1. 查找nginx 的安装位置：
root@VERDE-SICC-APPLICATION1:/# find / -name 'nginx'/home/apache/blueview-tomcat/webapps/ROOT/static/vendor/editormd/lib/codemirror/mode/nginx/etc/default/nginx/etc/nginx/etc/logrotate.d/nginx/etc/init.d/nginx/etc/ufw/applications.d/nginx/var/lib/nginx/var/log/nginx/usr/lib/nginx/usr/sbin/nginx/usr/share/nginx/usr/share/doc/nginxroot@VERDE-SICC-APPLICATION1:/# find / -name 'nginx.conf'/etc/nginx/nginx.conf2. 上传证书：
root@VERDE-SICC-APPLICATION1:/etc/nginx# lsconf.d fastcgi_params koi-win modules-available nginx.conf scgi_params sites-enabled uwsgi_paramsfastcgi.conf koi-utf mime.types modules-enabled proxy_params sites-available snippets win-utfroot@VERDE-SICC-APPLICATION1:/etc/nginx# mkdir certroot@VERDE-SICC-APPLICATION1:/etc/nginx# rz ZMODEM Session started e50------------------------ Sent 8444101_cloud.hnverde.com_nginx.zip root@VERDE-SICC-APPLICATION1:/etc/nginx# ls8444101_cloud.hnverde.com_nginx.zip conf.d fastcgi_params koi-win modules-available nginx.conf scgi_params sites-enabled uwsgi_paramscert fastcgi.conf koi-utf mime.types modules-enabled proxy_params sites-available snippets win-utfroot@VERDE-SICC-APPLICATION1:/etc/nginx# 3. 移动证书到 cert 文件夹
root@VERDE-SICC-APPLICATION1:/etc/nginx# mv 8444101_cloud.hnverde.com_nginx.zip certroot@VERDE-SICC-APPLICATION1:/etc/nginx# lscert fastcgi.conf koi-utf mime.types modules-enabled proxy_params sites-available snippets win-utfconf.d fastcgi_params koi-win modules-available nginx.conf scgi_params sites-enabled uwsgi_paramsroot@VERDE-SICC-APPLICATION1:/etc/nginx# cd certroot@VERDE-SICC-APPLICATION1:/etc/nginx/cert# ls8444101_cloud.hnverde.com_nginx.ziproot@VERDE-SICC-APPLICATION1:/etc/nginx/cert# unzip 8444101_cloud.hnverde.com_nginx.zip Archive: 8444101_cloud.hnverde.com_nginx.zipAliyun Certificate Download inflating: 8444101_cloud.hnverde.com.pem inflating: 8444101_cloud.hnverde.com.key root@VERDE-SICC-APPLICATION1:/etc/nginx/cert# ls8444101_cloud.hnverde.com.key 8444101_cloud.hnverde.com_nginx.zip 8444101_cloud.hnverde.com.pem4. 设置
server{ listen 443 ssl; server_name cloud.hnverde.com; root /usr/share/nginx/html; index index.html index.htm; ssl_certificate cert/8444101_cloud.hnverde.com.pem; ssl_certificate_key cert/8444101_cloud.hnverde.com.key; ssl_session_timeout 5m; ssl_protocols TLSv1 TLSv1.1 TLSv1.2; ssl_ciphers ECDHE-RSA-AES128-GCM-SHA256:ECDHE:ECDH:AES:HIGH:!NULL:!aNULL:!MD5:!ADH:!RC4; ssl_prefer_server_ciphers on; location / { root /usr/share/nginx/html; proxy_pass http://cloud.hnverde.com; index index.html index.htm; } location ~ .*.(jpg|jpeg|gif|png|swf|rar|zip|css|js)$ { proxy_pass http://cloud.hnverde.com; }}5. 完备nginx.conf 设置
user www-data;worker_processes auto;pid /run/nginx.pid;#include /etc/nginx/modules-enabled/*.conf;events { worker_connections 768; # multi_accept on;}http{server{ listen 80; server_name cloud.hnverde.com; location / { root /usr/share/nginx/html; try_files $uri $uri/ @router; index index.html; } location @router { rewrite ^.*$ https://$host$1; } error_page 500 502 503 504 /50x.html; location = /50x.html { root html; } ## # Basic Settings ## sendfile off; tcp_nopush on; tcp_nodelay on; keepalive_timeout 65; types_hash_max_size 2048; # server_tokens off; # server_names_hash_bucket_size 64; # server_name_in_redirect off; include /etc/nginx/mime.types; default_type application/octet-stream; ## # SSL Settings ## listen 443 ssl; server_name cloud.hnverde.com; root /usr/share/nginx/html; index index.html index.htm; ssl_certificate cert/8444101_cloud.hnverde.com.pem; ssl_certificate_key cert/8444101_cloud.hnverde.com.key; ssl_session_timeout 5m; ssl_protocols TLSv1 TLSv1.1 TLSv1.2; # Dropping SSLv3, ref: POODLE ssl_ciphers ECDHE-RSA-AES128-GCM-SHA256:ECDHE:ECDH:AES:HIGH:!NULL:!aNULL:!MD5:!ADH:!RC4; ssl_prefer_server_ciphers on; ## # Logging Settings ## access_log /var/log/nginx/access.log; error_log /var/log/nginx/error.log; ## # Gzip Settings ## gzip on; # gzip_vary on; # gzip_proxied any; # gzip_comp_level 6; # gzip_buffers 16 8k; # gzip_http_version 1.1; # gzip_types text/plain text/css application/json application/javascript text/xml application/xml application/xml+rss text/javascript; ## # Virtual Host Configs ## #include /etc/nginx/conf.d/*.conf; #include /etc/nginx/sites-enabled/*;}}#mail {# # See sample authentication script at:# # http://wiki.nginx.org/ImapAuthenticateWithApachePhpScript# # # auth_http localhost/auth.php;# # pop3_capabilities "TOP" "USER";# # imap_capabilities "IMAP4rev1" "UIDPLUS";# # server {# listen localhost:110;# protocol pop3;# proxy on;# }# # server {# listen localhost:143;# protocol imap;# proxy on;# }#}6. 前端可以了，但是背景还不是https 的，以是表现跨域问题
# 重新加载设置nginx -s reload7. 背景以转发方式完成，设置如下
nginx.conf 设置
user www-data;worker_processes auto;pid /run/nginx.pid;#include /etc/nginx/modules-enabled/*.conf;events { worker_connections 768; # multi_accept on;}http{#server{# listen 80;# server_name cloud.****.com; # location / {# root /usr/share/nginx/html;# try_files $uri $uri/ @router; # index index.html;# }#}server { listen 80; #请填写绑定证书的域名 server_name cloud.***.com; #把http的域名哀求转成https return 301 https://$host$request_uri; } ## # Basic Settings ## sendfile off; tcp_nopush on; tcp_nodelay on; keepalive_timeout 65; types_hash_max_size 2048; # server_tokens off; # server_names_hash_bucket_size 64; # server_name_in_redirect off; include /etc/nginx/mime.types; default_type application/octet-stream;server{ ## # SSL Settings ## listen 443 ssl; server_name cloud.hnverde.com; root /usr/share/nginx/html; index index.html index.htm; ssl_certificate cert/8444101_cloud.***.com.pem; ssl_certificate_key cert/8444101_cloud.****.com.key; ssl_session_timeout 5m; ssl_protocols TLSv1 TLSv1.1 TLSv1.2; # Dropping SSLv3, ref: POODLE ssl_ciphers ECDHE-RSA-AES128-GCM-SHA256:ECDHE:ECDH:AES:HIGH:!NULL:!aNULL:!MD5:!ADH:!RC4; ssl_prefer_server_ciphers on; location / { #网站主页路径。此路径仅供参考，具体请您按照现实目次利用。 #比方，您的网站主页在 Nginx 服务器的 /etc/www 目次下，则请修改 root 反面的 html 为 /etc/www。 root /usr/share/nginx/html; index index.html index.htm; } location /api { #后端接口设置 proxy_pass http://120.77.**.**:6557/api; #本机的9999后端api接口，留意这个端口是要和yaml文件的端口一致 proxy_set_header X-Forwarded-For $proxy_add_x_forwarded_for; } ## # Logging Settings ## access_log /var/log/nginx/access.log; error_log /var/log/nginx/error.log; ## # Gzip Settings ## gzip on; # gzip_vary on; # gzip_proxied any; # gzip_comp_level 6; # gzip_buffers 16 8k; # gzip_http_version 1.1; # gzip_types text/plain text/css application/json application/javascript text/xml application/xml application/xml+rss text/javascript; ## # Virtual Host Configs ## #include /etc/nginx/conf.d/*.conf; #include /etc/nginx/sites-enabled/*;}}#mail {# # See sample authentication script at:# # http://wiki.nginx.org/ImapAuthenticateWithApachePhpScript# # # auth_http localhost/auth.php;# # pop3_capabilities "TOP" "USER";# # imap_capabilities "IMAP4rev1" "UIDPLUS";# # server {# listen localhost:110;# protocol pop3;# proxy on;# }# # server {# listen localhost:143;# protocol imap;# proxy on;# }#}8. 访问所在：

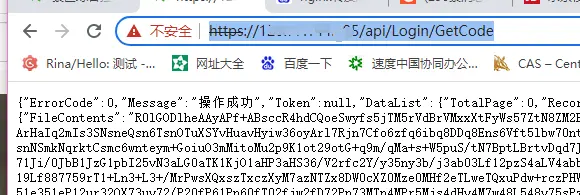

https://120...195:443/api/Login/GetCode

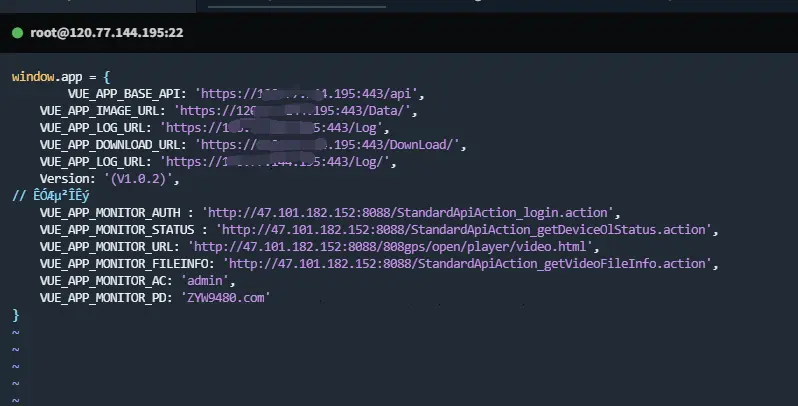

9. 同理，server.js 内里设置也要变：
10. 增补，项目图片放在Data目次下，以是要在 nginx.conf 参加
location /Data { #获取后端图片 proxy_pass http://120.77.144.195:6557/Data; #本机的9999后端api接口，留意这个端口是要和yaml文件的端口一致 proxy_set_header X-Forwarded-For $proxy_add_x_forwarded_for; }// 同理 location /Log { #后端接口设置 proxy_pass http://120.77.144.195:6557/Log; #本机的9999后端api接口，留意这个端口是要和yaml文件的端口一致 proxy_set_header X-Forwarded-For $proxy_add_x_forwarded_for; } location /DownLoad { #后端接口设置 proxy_pass http://120.77.144.195:6557/DownLoad; #本机的9999后端api接口，留意这个端口是要和yaml文件的端口一致 proxy_set_header X-Forwarded-For $proxy_add_x_forwarded_for; }
- 部分页面 Data 下面的图片单独访问没问题，在页面中访问就会跨域（调用腾讯地图，并更换底图的图片），修改如下
location /Data { add_header 'Access-Control-Allow-Origin' "$http_origin" always; add_header 'Access-Control-Allow-Credentials' 'true' always; add_header 'Access-Control-Allow-Methods' 'GET, OPTIONS' always; add_header 'Access-Control-Allow-Headers' 'Accept,Authorization,Cache-Control,Content-Type,DNT,If-Modified- Since,Keep-Alive,Origin,User-Agent,X-Requested-With' always; #后端接口设置 proxy_pass http://120.77.144.195:6557/Data; #本机的9999后端api接口，留意这个端口是要和yaml文件的端口一致 proxy_set_header X-Forwarded-For $proxy_add_x_forwarded_for; }
root@VERDE-SICC-APPLICATION1:~# cat /etc/nginx/nginx.conf user www-data;worker_processes auto;pid /run/nginx.pid;#include /etc/nginx/modules-enabled/*.conf;events { worker_connections 768; # multi_accept on;}http{#server{# listen 80;# server_name cloud.hnverde.com; # location / {# root /usr/share/nginx/html;# try_files $uri $uri/ @router; # index index.html;# }#}server { listen 80; #请填写绑定证书的域名 server_name cloud.hnverde.com; #把http的域名哀求转成https return 301 https://$host$request_uri; } ## # Basic Settings ## sendfile off; tcp_nopush on; tcp_nodelay on; keepalive_timeout 65; types_hash_max_size 2048; # server_tokens off; # server_names_hash_bucket_size 64; # server_name_in_redirect off; include /etc/nginx/mime.types; default_type application/octet-stream;server{ ## # SSL Settings ## listen 443 ssl; server_name cloud.hnverde.com; root /usr/share/nginx/html; index index.html index.htm; ssl_certificate cert/8444101_cloud.hnverde.com.pem; ssl_certificate_key cert/8444101_cloud.hnverde.com.key; ssl_session_timeout 5m; ssl_protocols TLSv1 TLSv1.1 TLSv1.2; # Dropping SSLv3, ref: POODLE ssl_ciphers ECDHE-RSA-AES128-GCM-SHA256:ECDHE:ECDH:AES:HIGH:!NULL:!aNULL:!MD5:!ADH:!RC4; ssl_prefer_server_ciphers on; location / { #网站主页路径。此路径仅供参考，具体请您按照现实目次利用。 #比方，您的网站主页在 Nginx 服务器的 /etc/www 目次下，则请修改 root 反面的 html 为 /etc/www。 root /usr/share/nginx/html; index index.html index.htm; } location /api { #后端接口设置 proxy_pass http://120.77.144.195:6557/api; #本机的9999后端api接口，留意这个端口是要和yaml文件的端口一致 proxy_set_header X-Forwarded-For $proxy_add_x_forwarded_for; } location /Data { #后端接口设置 proxy_pass http://120.77.144.195:6557/Data; #本机的9999后端api接口，留意这个端口是要和yaml文件的端口一致 proxy_set_header X-Forwarded-For $proxy_add_x_forwarded_for; } location /Log { #后端接口设置 proxy_pass http://120.77.144.195:6557/Log; #本机的9999后端api接口，留意这个端口是要和yaml文件的端口一致 proxy_set_header X-Forwarded-For $proxy_add_x_forwarded_for; } location /DownLoad { #后端接口设置 proxy_pass http://120.77.144.195:6557/DownLoad; #本机的9999后端api接口，留意这个端口是要和yaml文件的端口一致 proxy_set_header X-Forwarded-For $proxy_add_x_forwarded_for; } ## # Logging Settings ## access_log /var/log/nginx/access.log; error_log /var/log/nginx/error.log; ## # Gzip Settings ## gzip on; # gzip_vary on; # gzip_proxied any; # gzip_comp_level 6; # gzip_buffers 16 8k; # gzip_http_version 1.1; # gzip_types text/plain text/css application/json application/javascript text/xml application/xml application/xml+rss text/javascript; ## # Virtual Host Configs ## #include /etc/nginx/conf.d/*.conf; #include /etc/nginx/sites-enabled/*;}}#mail {# # See sample authentication script at:# # http://wiki.nginx.org/ImapAuthenticateWithApachePhpScript# # # auth_http localhost/auth.php;# # pop3_capabilities "TOP" "USER";# # imap_capabilities "IMAP4rev1" "UIDPLUS";# # server {# listen localhost:110;# protocol pop3;# proxy on;# }# # server {# listen localhost:143;# protocol imap;# proxy on;# }#}11. 上传限定
client_max_body_size 2000M; #答应客户端哀求的最大单文件字节数client_body_buffer_size 128k; #缓冲区署理缓冲用户端请>求的最大字节数fastcgi_intercept_errors on;
user www-data;worker_processes auto;pid /run/nginx.pid;#include /etc/nginx/modules-enabled/*.conf;events { worker_connections 768; # multi_accept on;}http{#server{# listen 80;# server_name cloud.hnverde.com; # location / {# root /usr/share/nginx/html;# try_files $uri $uri/ @router; # index index.html;# }#}server { listen 80; #请填写绑定证书的域名 server_name cloud.hnverde.com; #把http的域名哀求转成https return 301 https://$host$request_uri; } ## # Basic Settings ## client_max_body_size 2000M; #答应客户端哀求的最大单文件字节数client_body_buffer_size 128k; #缓冲区署理缓冲用户端请>求的最大字节数fastcgi_intercept_errors on; sendfile off; tcp_nopush on; tcp_nodelay on; keepalive_timeout 65; types_hash_max_size 2048; # server_tokens off; # server_names_hash_bucket_size 64; # server_name_in_redirect off; include /etc/nginx/mime.types; default_type application/octet-stream;server{ ## # SSL Settings ## listen 443 ssl; server_name cloud.hnverde.com; root /usr/share/nginx/html; index index.html index.htm; ssl_certificate cert/8444101_cloud.hnverde.com.pem; ssl_certificate_key cert/8444101_cloud.hnverde.com.key; ssl_session_timeout 5m; ssl_protocols TLSv1 TLSv1.1 TLSv1.2; # Dropping SSLv3, ref: POODLE ssl_ciphers ECDHE-RSA-AES128-GCM-SHA256:ECDHE:ECDH:AES:HIGH:!NULL:!aNULL:!MD5:!ADH:!RC4; ssl_prefer_server_ciphers on; location / { #网站主页路径。此路径仅供参考，具体请您按照现实目次利用。 #比方，您的网站主页在 Nginx 服务器的 /etc/www 目次下，则请修改 root 反面的 html 为 /etc/www。 root /usr/share/nginx/html; index index.html index.htm; } location /api { #后端接口设置 proxy_pass http://120.77.144.195:6557/api; #本机的9999后端api接口，留意这个端口是要和yaml文件的端口一致 proxy_set_header X-Forwarded-For $proxy_add_x_forwarded_for; } location /Data { add_header 'Access-Control-Allow-Origin' "$http_origin" always; add_header 'Access-Control-Allow-Credentials' 'true' always; add_header 'Access-Control-Allow-Methods' 'GET, OPTIONS' always; add_header 'Access-Control-Allow-Headers' 'Accept,Authorization,Cache-Control,Content-Type,DNT,If-Modified- Since,Keep-Alive,Origin,User-Agent,X-Requested-With' always; #后端接口设置 proxy_pass http://120.77.144.195:6557/Data; #本机的9999后端api接口，留意这个端口是要和yaml文件的端口一致 proxy_set_header X-Forwarded-For $proxy_add_x_forwarded_for; } location /Log { #后端接口设置 proxy_pass http://120.77.144.195:6557/Log; #本机的9999后端api接口，留意这个端口是要和yaml文件的端口一致 proxy_set_header X-Forwarded-For $proxy_add_x_forwarded_for; } location /DownLoad { #后端接口设置 proxy_pass http://120.77.144.195:6557/DownLoad; #本机的9999后端api接口，留意这个端口是要和yaml文件的端口一致 proxy_set_header X-Forwarded-For $proxy_add_x_forwarded_for; } ## # Logging Settings ## access_log /var/log/nginx/access.log; error_log /var/log/nginx/error.log; ## # Gzip Settings ## gzip on; # gzip_vary on; # gzip_proxied any; # gzip_comp_level 6; # gzip_buffers 16 8k; # gzip_http_version 1.1; # gzip_types text/plain text/css application/json application/javascript text/xml application/xml application/xml+rss text/javascript; ## # Virtual Host Configs ## #include /etc/nginx/conf.d/*.conf; #include /etc/nginx/sites-enabled/*;}}#mail {# # See sample authentication script at:# # http://wiki.nginx.org/ImapAuthenticateWithApachePhpScript# # # auth_http localhost/auth.php;# # pop3_capabilities "TOP" "USER";# # imap_capabilities "IMAP4rev1" "UIDPLUS";# # server {# listen localhost:110;# protocol pop3;# proxy on;# }# # server {# listen localhost:143;# protocol imap;# proxy on;# }#} |
