跟着Nature Communications学作图：R语言ggplot2散点组合误差线展示响应比

开发者 · 2024-9-28 16:00:23

论文

Meta-analysis of the impacts of global change factors on soil microbial diversity and functionality

https://www.nature.com/articles/s41467-020-16881-7#Sec15
论文里提供了数据和代码，很好的学习素材
这篇论文是公众号的一位读者留言，说这篇论文提供了数据和代码，但是代码比较长，看起来比较吃力。我看了论文中提供的代码，大体上能够看懂，争取抽时间把论文中提供的代码都复现一下。因为论文中的图都对应着提供了作图数据，我们想复现论文中的图。关于用原始数据分析的部分后续有时间在单独介绍。
论文中提供的代码链接
https://static-content.springer.com/esm/art%3A10.1038%2Fs41467-020-16881-7/MediaObjects/41467_2020_16881_MOESM8_ESM.txt

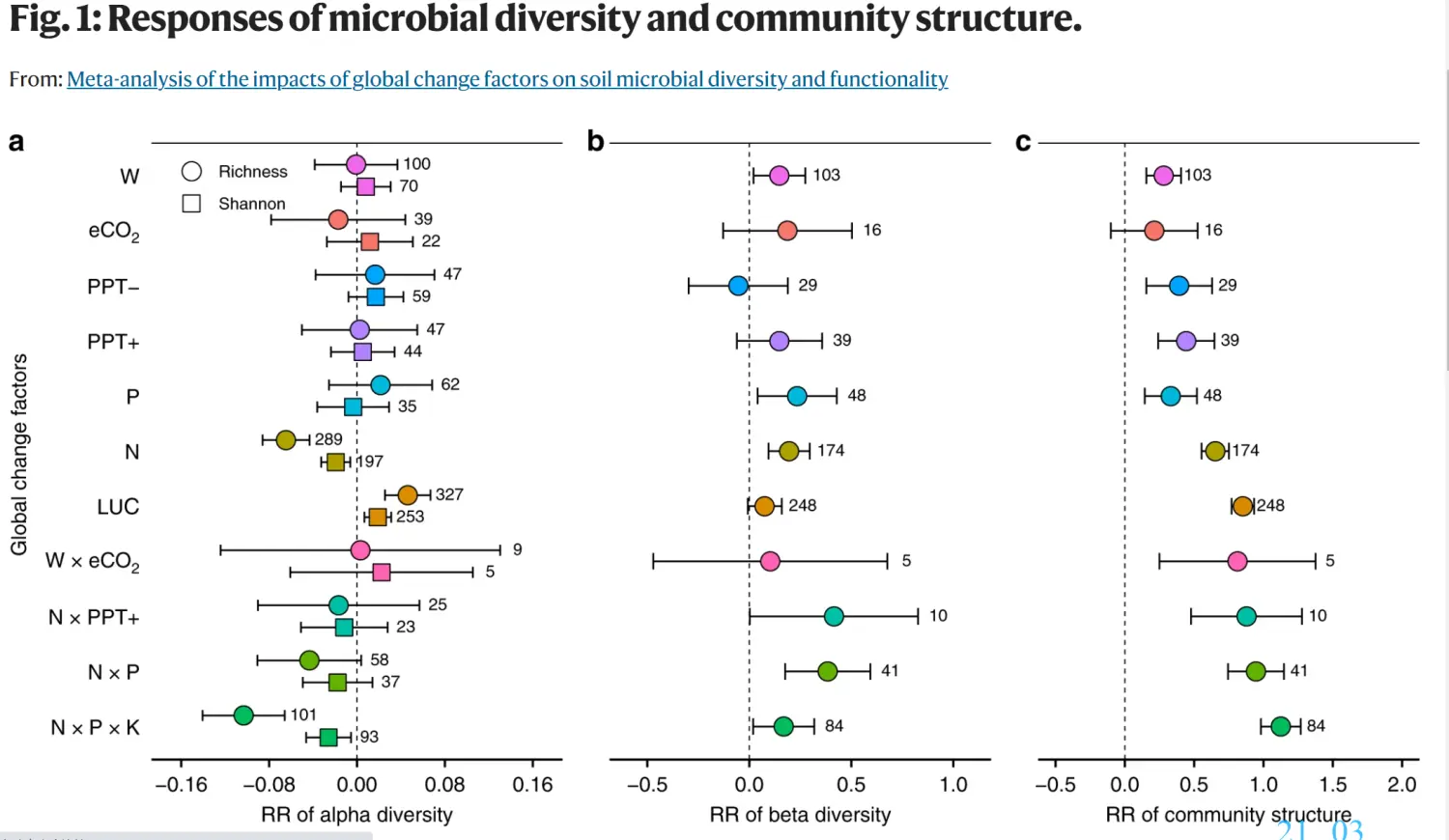

今天的推文我们复现论文中的figure1

论文中提供的作图数据如下，excel存储
加载需要用到的R包

library(readxl)library(tidyverse)library(latex2exp)library(ggplot2)读取数据

metaresult<-read_excel("data/20221129/41467_2020_16881_MOESM9_ESM.xlsx", sheet = 'Fig1')colnames(metaresult)首先是第一个小图a

论文中的代码是用RR作为Y轴，GCFs作为X轴，然后再通过coord_flip()函数整体旋转；论文中关于字体上小标是用expression函数实现的，这里我们使用latex2exp这个R包
代码我们参考论文中的代码，但是不完全按照他的写
数据整理和作图代码
data1<-metaresult %>% filter(Variables=="Richness"|Variables=="Shannon")data1$GCFsdata1<-data1 %>% mutate(GCFs=factor(GCFs, levels = c("N_P_K","N_P","N_PPT+", "W_eCO2","LUC","N","

", "

PT+","

PT-","eCO2","W")))data1 %>% colnames()ggplot(data = data1, aes(x=`Weighted means of RR`, y=`GCFs`, shape=Variables))+ geom_vline(xintercept=0,linetype = "dashed",size=0.2)+ geom_errorbarh(aes(xmin=`Lower confidence intervals`, xmax=`Upper confidence intervals`), position=position_dodge(0.8), height=0.2)+ geom_point(position=position_dodge(0.8), size=3, stroke = 0.3, aes(fill=GCFs), show.legend = FALSE)+ geom_text(aes(y =`GCFs` , x = `Upper confidence intervals`+0.015, label = `Sample sizes`), position = position_dodge(width = 0.8), vjust = 0.4, hjust=0.4, size = 4, check_overlap = FALSE)+ geom_segment(y = 11.6, x = -Inf, yend = 11.6, xend = Inf, colour = "black",size=0.4)+ scale_shape_manual(values=c("Richness"=21,"Shannon"=22))+ scale_x_continuous(limits=c(-0.17,0.17), breaks = c(-0.16,-0.08,0,0.08,0.16))+ scale_y_discrete(breaks=c("N_P_K","N_P","N_PPT+", "W_eCO2","LUC","N","

", "

PT+","

PT-","eCO2","W"), labels=c(TeX(r"($N \times P \times K$)"), TeX(r"($N \times P$)"), TeX(r"($N \times PPT$+)"), TeX(r"($W \times eCO_2$)"), "LUC","N","

","

PT+","

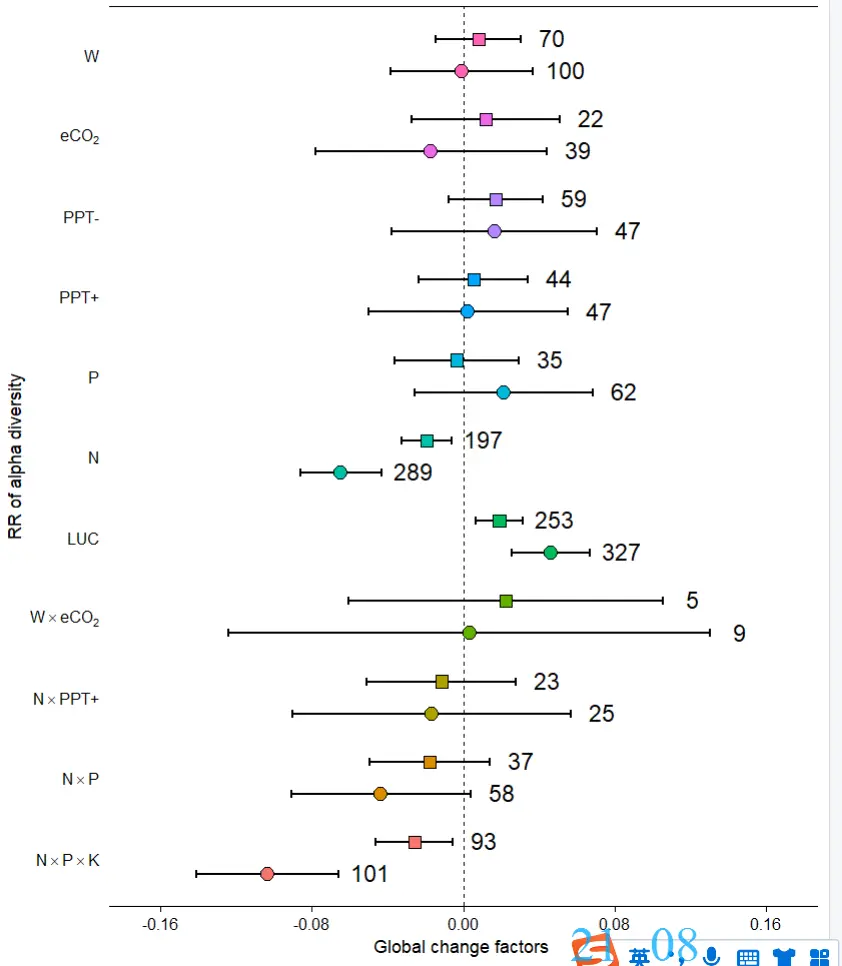

PT-", TeX(r"($eCO_2$)"), "W"))+ labs(x = "Global change factors ", y = "RR of alpha diversity",colour = 'black')+ theme(legend.title = element_blank(), legend.position=c(0.2,0.94), legend.key = element_rect(fill = "white",size = 2), legend.key.width = unit(0.5,"lines"), legend.key.height= unit(0.8,"lines"), legend.background = element_blank(), legend.text=element_text(size=6), panel.background = element_rect(fill = 'white', colour = 'white'), axis.title=element_text(size=9), axis.text.y = element_text(colour = 'black', size = 8), axis.text.x = element_text(colour = 'black', size = 8), axis.line = element_line(colour = 'black',size=0.4), axis.line.y = element_blank(), axis.ticks = element_line(colour = 'black',size=0.4), axis.ticks.y = element_blank())输出结果

小图b

data2<-metaresult %>% filter(Variables=="Beta Diversity")data2$GCFsdata2<-data2 %>% mutate(GCFs=factor(GCFs, levels = c("N_P_K","N_P","N_PPT+", "W_eCO2","LUC","N","

",                               "PPT+","PPT-","eCO2","W"))  )data2 %>% colnames()ggplot(data = data2,    aes(x=`Weighted means of RR`,          y=`GCFs`))+  geom_vline(xintercept=0,linetype = "dashed",size=0.2)+  geom_errorbarh(aes(xmin=`Lower confidence intervals`,                   xmax=`Upper confidence intervals`),                height=0.2)+  geom_point(size=3, stroke = 0.3,          shape=21,          aes(fill=GCFs),          show.legend = FALSE)+  geom_text(aes(y =`GCFs` , x = `Upper confidence intervals`+0.1,                label = `Sample sizes`),          #position = position_dodge(width = 0.8),          vjust = 0.4, hjust=0.4, size = 4,          check_overlap = FALSE)+  geom_segment(y = 11.6, x = -Inf,             yend = 11.6, xend = Inf,             colour = "black",size=0.4)+  scale_x_continuous(limits=c(-0.6,1.1),breaks = c(-0.5,0,0.5,1))+  scale_y_discrete(breaks=c("N_P_K","N_P","N_PPT+",                         "W_eCO2","LUC","N","P",                         "PPT+","PPT-","eCO2","W"),                labels=c(TeX(r"($N \times P \times K$)"),                         TeX(r"($N \times P$)"),                         TeX(r"($N \times PPT$+)"),                         TeX(r"($W \times eCO_2$)"),                         "LUC","N","P","PPT+","PPT-",                         TeX(r"($eCO_2$)"),                         "W"))+  labs(y = "Global change factors ",       x = "RR of alpha diversity",    colour = 'black')+  theme(legend.title = element_blank(),       legend.position=c(0.2,0.9),       legend.key = element_rect(fill = "white",size = 2),       legend.key.width = unit(0.5,"lines"),       legend.key.height= unit(0.8,"lines"),       legend.background = element_blank(),       legend.text=element_text(size=6),       panel.background = element_rect(fill = 'white', colour = 'white'),       axis.title=element_text(size=9),       axis.text.y = element_text(colour = 'black', size = 8),       axis.text.x = element_text(colour = 'black', size = 8),       axis.line = element_line(colour = 'black',size=0.4),       axis.line.y = element_blank(),       axis.ticks = element_line(colour = 'black',size=0.4),       axis.ticks.y = element_blank())小图c

data3<-metaresult %>% filter(Variables=="Community structure")data3$GCFsdata3<-data3 %>% mutate(GCFs=factor(GCFs,                   levels = c("N_P_K","N_P","N_PPT+",                               "W_eCO2","LUC","N","P",                               "PPT+","PPT-","eCO2","W"))  )data3 %>% colnames()ggplot(data = data3,    aes(x=`Weighted means of RR`,          y=`GCFs`))+  geom_vline(xintercept=0,linetype = "dashed",size=0.2)+  geom_errorbarh(aes(xmin=`Lower confidence intervals`,                   xmax=`Upper confidence intervals`),                height=0.2)+  geom_point(size=3, stroke = 0.3,          shape=21,          aes(fill=GCFs),          show.legend = FALSE)+  geom_text(aes(y =`GCFs` , x = `Upper confidence intervals`+0.1,                label = `Sample sizes`),          #position = position_dodge(width = 0.8),          vjust = 0.4, hjust=0.4, size = 4,          check_overlap = FALSE)+  geom_segment(y = 11.6, x = -Inf,             yend = 11.6, xend = Inf,             colour = "black",size=0.4)+  scale_x_continuous(limits=c(-0.6,2.0),breaks = c(-0.5,0,0.5,1,1.5,2.0))+  scale_y_discrete(breaks=c("N_P_K","N_P","N_PPT+",                         "W_eCO2","LUC","N","P",                         "PPT+","PPT-","eCO2","W"),                labels=c(TeX(r"($N \times P \times K$)"),                         TeX(r"($N \times P$)"),                         TeX(r"($N \times PPT$+)"),                         TeX(r"($W \times eCO_2$)"),                         "LUC","N","P","PPT+","PPT-",                         TeX(r"($eCO_2$)"),                         "W"))+  labs(y = "Global change factors ",       x = "RR of community structure",    colour = 'black')+  theme(legend.title = element_blank(),       legend.position=c(0.2,0.9),       legend.key = element_rect(fill = "white",size = 2),       legend.key.width = unit(0.5,"lines"),       legend.key.height= unit(0.8,"lines"),       legend.background = element_blank(),       legend.text=element_text(size=6),       panel.background = element_rect(fill = 'white', colour = 'white'),       axis.title=element_text(size=9),       axis.text.y = element_text(colour = 'black', size = 8),       axis.text.x = element_text(colour = 'black', size = 8),       axis.line = element_line(colour = 'black',size=0.4),       axis.line.y = element_blank(),       axis.ticks = element_line(colour = 'black',size=0.4),       axis.ticks.y = element_blank())图b和图c是一样的
最后是拼图

论文中提供的拼图代码是用ggpubr这个R包做的

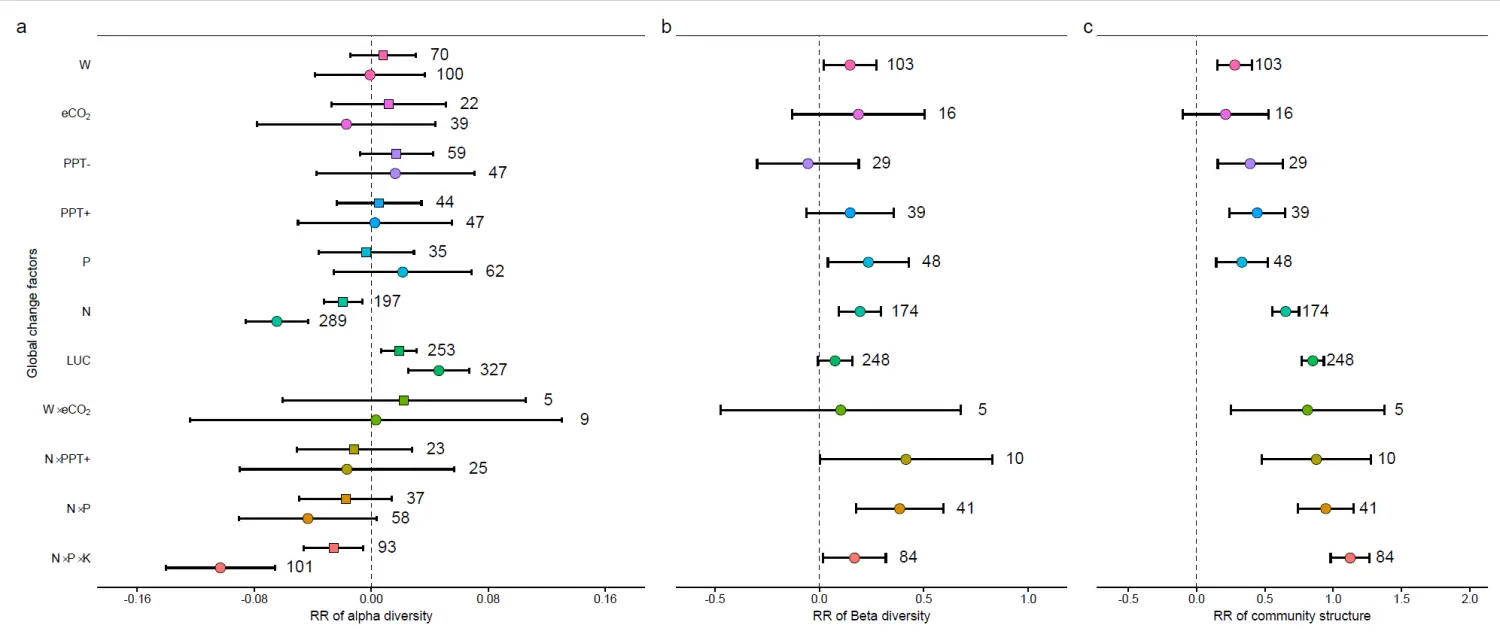

ggpubr::ggarrange(p1, p2, p3,          widths = c(7, 5, 5),       ncol = 3, nrow = 1,          labels = c("a", "b", "c"),          font.label=list(size=12),       hjust = 0, vjust = 1)我自己更习惯使用patchwork这个R包
library(patchwork)p1+  p2+theme(axis.text.y = element_blank(),          axis.title.y = element_blank())+  p3+theme(axis.text.y = element_blank(),          axis.title.y = element_blank())+  plot_annotation(tag_levels = "a")+  plot_layout(widths = c(7, 5, 5))最终结果

示例数据和代码可以自己到论文中下载，如果需要我推文中的代码和数据可以给公众号推文点赞，点击在看，最后留言获取

查rma()函数找到了这个链接
http://www.simonqueenborough.info/R/specialist/meta-analysis#:~:text=The%20function%20rma()%20(random,compute%20effect%20sizes%20before%20modelling.&text=Random%20effect%20model%20can%20be,%2D%2D%2DFixed%20effect%20model%20cannot.
http://www.simonqueenborough.info/R/intro/index.html
