UIBezierPath,Quartz2D,OpenGLES
1. UIBezierPath
1 UIBezierPath
- 使用UIBezierPath可以创建基于矢量的路径，此类是Core Graphics框架关于路径的封装。使用此类可以界说简朴的外形，如椭圆、矩形大概有多个直线和曲线段构成的外形等。
- UIBezierPath是CGPathRef数据范例的封装。假如是基于矢量外形的路径，都用直线和曲线去创建。我们使用直线段去创建矩形和多边形，使用曲线去创建圆弧（arc）、圆大概其他复杂的曲线外形。
使用UIBezierPath画图步调：
- 创建一个UIBezierPath对象
- 调用-moveToPoint:设置初始线段的起点
- 添加直线线大概曲线 addQuadCurveToPoint:
- 绘制drawRect: 对每个UIBezierPath举行绘制
1. 初始化 UIBezierPath 并添加属性 self.beziPath = [[UIBezierPath alloc] init];2. 画板的View里实现touchesBegan，touchesMoved，touchesEnded的署理方法3. 每次操纵都是对 UIBezierPath的绘制 - (void)touchesBegan NSSet *)touches withEventUIEvent *)event{ UITouch *touch = [touches anyObject]; CGPoint currentPoint = [touch locationInView:self]; // 创建一个UIBezierPath self.beziPath = [[DCBeizierPath alloc] init]; self.beziPath.lineColor = self.lineColor; self.beziPath.isErase = self.isErase; self.beziPath.lineJoinStyle = kCGLineJoinRound; self.beziPath.lineCapStyle = kCGLineCapRound; // 设置起始点 [self.beziPath moveToPoint:currentPoint]; // 将path添加到数组 [self.beziPathArrM addObject:self.beziPath];}- (void)touchesMovedNSSet<UITouch *> *)touches withEventUIEvent *)event{ UITouch *touch = [touches anyObject]; // 获取移动的点 CGPoint currentPoint = [touch locationInView:self]; CGPoint previousPoint = [touch previousLocationInView:self]; CGPoint midP = midPoint(previousPoint,currentPoint); //1.将点添加到path内里，2.举行绘制 [self.beziPath addQuadCurveToPoint:currentPoint controlPoint:midP]; [self setNeedsDisplay];}- (void)touchesEndedNSSet<UITouch *> *)touches withEventUIEvent *)event{ UITouch *touch = [touches anyObject]; // 获取竣事点 CGPoint currentPoint = [touch locationInView:self]; CGPoint previousPoint = [touch previousLocationInView:self]; CGPoint midP = midPoint(previousPoint,currentPoint); //1.将点添加到path内里，2.举行绘制 [self.beziPath addQuadCurveToPoint:currentPoint controlPoint:midP]; [self setNeedsDisplay];}// 盘算中心点CGPoint midPoint(CGPoint p1, CGPoint p2){ return CGPointMake((p1.x + p2.x) * 0.5, (p1.y + p2.y) * 0.5);}4. 举行绘制 - (void)drawRectCGRect)rect{ // 绘制每一条path if(self.beziPathArrM.count){ for (DCBeizierPath *path in self.beziPathArrM) { if (path.isErase) { // 橡皮擦 [[UIColor clearColor] setStroke]; path.lineWidth = kEraseLineWidth; [path strokeWithBlendMode:kCGBlendModeCopy alpha:1.0]; } else { // 画线 [path.lineColor setStroke]; path.lineWidth = kLineWidth; [path strokeWithBlendMode:kCGBlendModeNormal alpha:1.0]; } [path stroke]; } } [super drawRect:rect];}总结
- 优点
1.这种实现方式最简朴 而且也是直接调用oc的API实现，方法实现较为简朴。
2.用已知存储的点 添加路径 再绘制，速率很快。
- 缺点
1.假如须要保持每条你画的线都在，你须要生存每一条绘画路径。
2.每次在绘画新添加的绘画线条的时间，都要把这条线段之前全部的线段在重绘一次，浪费体系性能。
3.假如你不在乎这点性能的浪费,那么另有问题,当你越画线段越多的时间 屏幕辨认点的间隔会越来越大，而且显着能感觉到绘画速率变慢 渐渐能看到之火线段绘画的轨迹。
- 应用场景
1.一次性画一些简朴的线段,而且不做修改的环境下可以使用。
2.UI上须要做一些结果的简朴线段可以使用。
3.须要频仍修改和绘画的环境下，不发起使用。
2. Quartz2D
在画线的时间，方法的内部默认创建一个path。它把路径都放到了path内里去。
1.创建路径 CGMutablePathRef 调用该方法相当于创建了一个路径，这个路径用来生存画图信息。 > 2.把画图信息添加到路径里边。 从前的方法是点的位置添加到ctx（图形上下文信息）中，ctx 默认会在内 部创建一个path用来生存画图信息。在图形上下文中有一块存储空间专门用来存储画图信息，实在这块空间就是CGMutablePathRef。
3.把路径添加到上下文中。
1.画笔的初始化设置-(void)setup{ self.multipleTouchEnabled = YES; self.lineWidth = 5; self.lineColor =[UIColor blackColor];}2. touches署理方法-(void)touchesBeganNSSet *)touches withEventUIEvent *)event{ UITouch *touch = [touches anyObject]; self.previousPoint1 = [touch locationInView:self]; self.previousPoint2 = [touch locationInView:self]; self.currentPoint = [touch locationInView:self]; CGPoint mid1 = midPoint1(self.previousPoint1, self.previousPoint2); CGPoint mid2 = midPoint1(self.currentPoint, self.previousPoint1); CGMutablePathRef path = CGPathCreateMutable(); CGPathMoveToPoint(path, NULL, mid1.x, mid1.y); CGPathAddQuadCurveToPoint(path, NULL, self.previousPoint1.x, self.previousPoint1.y, mid2.x, mid2.y); CGRect bounds = CGPathGetBoundingBox(path); CGPathRelease(path); [self setNeedsDisplayInRect:bounds];}-(void)touchesMovedNSSet *)touches withEvent:(UIEvent *)event{ UITouch *touch = [touches anyObject]; self.previousPoint2 = self.previousPoint1; self.previousPoint1 = [touch previousLocationInView:self]; self.currentPoint = [touch locationInView:self]; CGPoint mid1 = midPoint1(self.previousPoint1, self.previousPoint2); CGPoint mid2 = midPoint1(self.currentPoint, self.previousPoint1); CGMutablePathRef path = CGPathCreateMutable(); CGPathMoveToPoint(path, NULL, mid1.x, mid1.x); CGPathAddQuadCurveToPoint(path, NULL, self.previousPoint1.x, self.previousPoint1.y, mid2.x, mid2.y); CGRect bounds = CGPathGetBoundingBox(path); CGPathRelease(path); [self setNeedsDisplayInRect:bounds]; }-(void)touchesEnded:(NSSet *)touches withEvent:(UIEvent *)event{ UITouch *touch = [touches anyObject]; self.previousPoint2 = self.previousPoint1; self.previousPoint1 = [touch previousLocationInView:self]; self.currentPoint = [touch locationInView:self]; CGPoint mid1 = midPoint1(self.previousPoint1, self.previousPoint2); CGPoint mid2 = midPoint1(self.currentPoint, self.previousPoint1); CGMutablePathRef path = CGPathCreateMutable(); CGPathMoveToPoint(path, NULL, mid1.x, mid1.y); CGPathAddQuadCurveToPoint(path, NULL, self.previousPoint1.x, self.previousPoint1.y, mid2.x, mid2.y); //绘画 CGRect bounds = CGPathGetBoundingBox(path); CGPathRelease(path); [self setNeedsDisplayInRect:bounds];}3. 绘制- (void)drawRect:(CGRect)rect{ CGPoint mid1 = midPoint1(self.previousPoint1, self.previousPoint2); CGPoint mid2 = midPoint1(self.currentPoint, self.previousPoint1); self.context = UIGraphicsGetCurrentContext(); CGContextMoveToPoint(self.context, mid1.x, mid1.y); // 添加画点 CGContextAddQuadCurveToPoint(self.context, self.previousPoint1.x, self.previousPoint1.y, mid2.x, mid2.y); // 设置圆角 CGContextSetLineCap(self.context, kCGLineCapRound); // 设置画笔颜色 CGContextSetLineWidth(self.context, self.isErase? kEraseLineWidth:kLineWidth); CGContextSetStrokeColorWithColor(self.context, self.isErase?[UIColor clearColor].CGColor:self.lineColor.CGColor); CGContextSetLineJoin(self.context, kCGLineJoinRound); // 根据是否是橡皮擦设置设置画笔模式 CGContextSetBlendMode(self.context, self.isErase ? kCGBlendModeDestinationIn:kCGBlendModeNormal); CGContextStrokePath(self.context); [super drawRect:rect];}总结
- 优点
1.绘画方法较为底层实现服从更高更快。
2.每次绘画都很流通 不会有延迟感 不会重绘已经画好的绘画路径。
3.线段更加圆润
- 缺点
1.假如有已知点聚集，重绘全部点路径 会斲丧很长时间才气画完。
2.假如App斲丧性能过多的话<我们的App起着一个视频会话，
一个通讯会话另有一些很多控件的交互>，在Pad3上绘画 会有断点
< ad2,mini2 3，Air都没有这个问题<iPhone还没测试过4s和5>>，
缘故原由大概在于：Pad3是Retina屏幕 分辨率增长一倍
但是Pad3的CPU GPU比Pad2却只增长了50%左右，
导致不能一连辨认到屏幕的触点，从而导致出现断点。
- 使用场景
1.App不太斲丧性能的环境下且不须要重绘的环境下可以使用。
2.只在一个页面绘画且绘画后不须要重绘的。
3.不care这点时间斲丧的。
三、OpenGLES
1.须要添加OpenGLES.framework体系库。并导入头文件

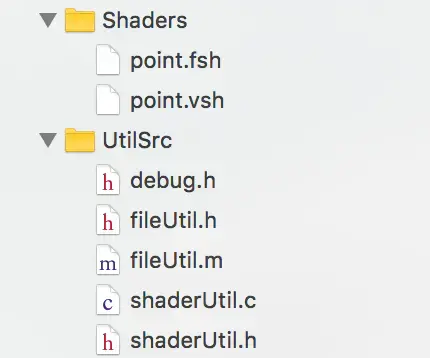

#import <OpenGLES/EAGL.h>#import <OpenGLES/ES2/gl.h>#import <OpenGLES/ES2/glext.h>#import <GLKit/GLKit.h>2.导入设置文件
#import "shaderUtil.h"#import "fileUtil.h"#import "debug.h"
3.这个半透明的图片很紧张 相当于笔触 通过他的透明度来控制渲染笔画颜色的深浅
// 创建一个纹理的图像- (textureInfo_t)textureFromName:(NSString *)name{ CGImageRef brushImage; CGContextRef brushContext; GLubyte *brushData; size_t width, height; GLuint texId; textureInfo_t texture; // First create a UIImage object from the data in a image file, and then extract the Core Graphics image brushImage = [UIImage imageNamed:name].CGImage; // Get the width and height of the image width = CGImageGetWidth(brushImage); height = CGImageGetHeight(brushImage); // Make sure the image exists if(brushImage) { // Allocate memory needed for the bitmap context brushData = (GLubyte *) calloc(width * height * 4, sizeof(GLubyte)); // Use the bitmatp creation function provided by the Core Graphics framework. brushContext = CGBitmapContextCreate(brushData, width, height, 8, width * 4, CGImageGetColorSpace(brushImage), kCGImageAlphaPremultipliedLast); // After you create the context, you can draw the image to the context. CGContextDrawImage(brushContext, CGRectMake(0.0, 0.0, (CGFloat)width, (CGFloat)height), brushImage); // You don't need the context at this point, so you need to release it to avoid memory leaks. CGContextRelease(brushContext); // Use OpenGL ES to generate a name for the texture. // //创建渲染缓冲管线 glGenTextures(1, &texId); // Bind the texture name. //绑定渲染缓冲管线 glBindTexture(GL_TEXTURE_2D, texId); // Set the texture parameters to use a minifying filter and a linear filer (weighted average) glTexParameteri(GL_TEXTURE_2D, GL_TEXTURE_MIN_FILTER, GL_LINEAR); // Specify a 2D texture image, providing the a pointer to the image data in memory glTexImage2D(GL_TEXTURE_2D, 0, GL_RGBA, (int)width, (int)height, 0, GL_RGBA, GL_UNSIGNED_BYTE, brushData); // Release the image data; it's no longer needed free(brushData); texture.id = texId; texture.width = (int)width; texture.height = (int)height; } return texture;}// 初始化GL- (BOOL)initGL{ // Generate IDs for a framebuffer object and a color renderbuffer ////创建帧缓冲管线 glGenFramebuffers(1, &viewFramebuffer); //绑定渲染缓冲管线 glGenRenderbuffers(1, &viewRenderbuffer); //绑定帧缓冲管线 glBindFramebuffer(GL_FRAMEBUFFER, viewFramebuffer); //将渲染缓冲区附加到帧缓冲区上 glBindRenderbuffer(GL_RENDERBUFFER, viewRenderbuffer); // This call associates the storage for the current render buffer with the EAGLDrawable (our CAEAGLLayer) // allowing us to draw into a buffer that will later be rendered to screen wherever the layer is (which corresponds with our view). [context renderbufferStorage:GL_RENDERBUFFER fromDrawable:(id<EAGLDrawable>)self.layer]; glFramebufferRenderbuffer(GL_FRAMEBUFFER, GL_COLOR_ATTACHMENT0, GL_RENDERBUFFER, viewRenderbuffer); glGetRenderbufferParameteriv(GL_RENDERBUFFER, GL_RENDERBUFFER_WIDTH, &backingWidth); glGetRenderbufferParameteriv(GL_RENDERBUFFER, GL_RENDERBUFFER_HEIGHT, &backingHeight); // For this sample, we do not need a depth buffer. If you do, this is how you can create one and attach it to the framebuffer: // glGenRenderbuffers(1, &depthRenderbuffer); // glBindRenderbuffer(GL_RENDERBUFFER, depthRenderbuffer); // glRenderbufferStorage(GL_RENDERBUFFER, GL_DEPTH_COMPONENT16, backingWidth, backingHeight); // glFramebufferRenderbuffer(GL_FRAMEBUFFER, GL_DEPTH_ATTACHMENT, GL_RENDERBUFFER, depthRenderbuffer); if(glCheckFramebufferStatus(GL_FRAMEBUFFER) != GL_FRAMEBUFFER_COMPLETE) { NSLog(@"failed to make complete framebuffer object %x", glCheckFramebufferStatus(GL_FRAMEBUFFER)); return NO; } //创建表现地域 glViewport(0, 0, backingWidth, backingHeight); // Create a Vertex Buffer Object to hold our data glGenBuffers(1, &vboId); // Load the brush texture // 设置笔头 brushTexture = [self textureFromName "article"]; // Load shaders [self setupShaders]; // Enable blending and set a blending function appropriate for premultiplied alpha pixel data glEnable(GL_BLEND); glBlendFunc(GL_ONE, GL_ONE_MINUS_SRC_ALPHA); return YES;}- (BOOL)resizeFromLayer:(CAEAGLLayer *)layer{ // Allocate color buffer backing based on the current layer size glBindRenderbuffer(GL_RENDERBUFFER, viewRenderbuffer); [context renderbufferStorage:GL_RENDERBUFFER fromDrawable:layer]; glGetRenderbufferParameteriv(GL_RENDERBUFFER, GL_RENDERBUFFER_WIDTH, &backingWidth); glGetRenderbufferParameteriv(GL_RENDERBUFFER, GL_RENDERBUFFER_HEIGHT, &backingHeight); // For this sample, we do not need a depth buffer. If you do, this is how you can allocate depth buffer backing: // glBindRenderbuffer(GL_RENDERBUFFER, depthRenderbuffer); // glRenderbufferStorage(GL_RENDERBUFFER, GL_DEPTH_COMPONENT16, backingWidth, backingHeight); // glFramebufferRenderbuffer(GL_FRAMEBUFFER, GL_DEPTH_ATTACHMENT, GL_RENDERBUFFER, depthRenderbuffer); if (glCheckFramebufferStatus(GL_FRAMEBUFFER) != GL_FRAMEBUFFER_COMPLETE) { NSLog(@"Failed to make complete framebuffer objectz %x", glCheckFramebufferStatus(GL_FRAMEBUFFER)); return NO; } // Update projection matrix GLKMatrix4 projectionMatrix = GLKMatrix4MakeOrtho(0, backingWidth, 0, backingHeight, -1, 1); GLKMatrix4 modelViewMatrix = GLKMatrix4Identity; // this sample uses a constant identity modelView matrix GLKMatrix4 MVPMatrix = GLKMatrix4Multiply(projectionMatrix, modelViewMatrix); glUseProgram(program[PROGRAM_POINT].id); glUniformMatrix4fv(program[PROGRAM_POINT].uniform[UNIFORM_MVP], 1, GL_FALSE, MVPMatrix.m); // Update viewport glViewport(0, 0, backingWidth, backingHeight); return YES;}- (void)setupShaders{ for (int i = 0; i < NUM_PROGRAMS; i++) { char *vsrc = readFile(pathForResource(program.vert)); char *fsrc = readFile(pathForResource(program.frag)); GLsizei attribCt = 0; GLchar *attribUsed[NUM_ATTRIBS]; GLint attrib[NUM_ATTRIBS]; GLchar *attribName[NUM_ATTRIBS] = { "inVertex", }; const GLchar *uniformName[NUM_UNIFORMS] = { "MVP", "pointSize", "vertexColor", "texture", }; // auto-assign known attribs for (int j = 0; j < NUM_ATTRIBS; j++) { if (strstr(vsrc, attribName[j])) { attrib[attribCt] = j; attribUsed[attribCt++] = attribName[j]; } } glueCreateProgram(vsrc, fsrc, attribCt, (const GLchar **)&attribUsed[0], attrib, NUM_UNIFORMS, &uniformName[0], program.uniform, &program.id); free(vsrc); free(fsrc); // Set constant/initalize uniforms if (i == PROGRAM_POINT) { glUseProgram(program[PROGRAM_POINT].id); // the brush texture will be bound to texture unit 0 glUniform1i(program[PROGRAM_POINT].uniform[UNIFORM_TEXTURE], 0); // viewing matrices GLKMatrix4 projectionMatrix = GLKMatrix4MakeOrtho(0, backingWidth, 0, backingHeight, -1, 1); GLKMatrix4 modelViewMatrix = GLKMatrix4Identity; // this sample uses a constant identity modelView matrix GLKMatrix4 MVPMatrix = GLKMatrix4Multiply(projectionMatrix, modelViewMatrix); glUniformMatrix4fv(program[PROGRAM_POINT].uniform[UNIFORM_MVP], 1, GL_FALSE, MVPMatrix.m); // point size glUniform1f(program[PROGRAM_POINT].uniform[UNIFORM_POINT_SIZE], brushTexture.width / kBrushScale); // initialize brush color glUniform4fv(program[PROGRAM_POINT].uniform[UNIFORM_VERTEX_COLOR], 1, brushColor); } } glError();}// 根据两点画线的方法- (void)renderLineFromPoint:(CGPoint)start toPoint:(CGPoint)end{ // NSLog(@"drawLineWithPoints--%@--%@",NSStringFromCGPoint(start),NSStringFromCGPoint(end)); static GLfloat* vertexBuffer = NULL; static NSUInteger vertexMax = 64; NSUInteger vertexCount = 0, count, i; [EAGLContext setCurrentContext:context]; glBindFramebuffer(GL_FRAMEBUFFER, viewFramebuffer); // Convert locations from Points to Pixels CGFloat scale = self.contentScaleFactor; start.x *= scale; start.y *= scale; end.x *= scale; end.y *= scale; // Allocate vertex array buffer if(vertexBuffer == NULL) vertexBuffer = malloc(vertexMax * 2 * sizeof(GLfloat)); // Add points to the buffer so there are drawing points every X pixels count = MAX(ceilf(sqrtf((end.x - start.x) * (end.x - start.x) + (end.y - start.y) * (end.y - start.y)) / kBrushPixelStep), 1); for(i = 0; i < count; ++i) { if(vertexCount == vertexMax) { vertexMax = 2 * vertexMax; vertexBuffer = realloc(vertexBuffer, vertexMax * 2 * sizeof(GLfloat)); } vertexBuffer[2 * vertexCount + 0] = start.x + (end.x - start.x) * ((GLfloat)i / (GLfloat)count); vertexBuffer[2 * vertexCount + 1] = start.y + (end.y - start.y) * ((GLfloat)i / (GLfloat)count); vertexCount += 1; } // Load data to the Vertex Buffer Object glBindBuffer(GL_ARRAY_BUFFER, vboId); glBufferData(GL_ARRAY_BUFFER, vertexCount*2*sizeof(GLfloat), vertexBuffer, GL_STATIC_DRAW); glEnableVertexAttribArray(ATTRIB_VERTEX); glVertexAttribPointer(ATTRIB_VERTEX, 2, GL_FLOAT, GL_FALSE, 0, 0); // Draw glUseProgram(program[PROGRAM_POINT].id); // 画线 glDrawArrays(GL_POINTS, 0, (int)vertexCount); // Display the buffer glBindRenderbuffer(GL_RENDERBUFFER, viewRenderbuffer); [context presentRenderbuffer:GL_RENDERBUFFER];}// 清晰- (void)clearDrawImageView{ [EAGLContext setCurrentContext:context]; // Clear the buffer glBindFramebuffer(GL_FRAMEBUFFER, viewFramebuffer); glClearColor(0.0, 0.0, 0.0, 0.0); glClear(GL_COLOR_BUFFER_BIT); // Display the buffer glBindRenderbuffer(GL_RENDERBUFFER, viewRenderbuffer); [context presentRenderbuffer:GL_RENDERBUFFER];}- (void)setBrushColorWithRed:(CGFloat)red green:(CGFloat)green blue:(CGFloat)blue alpha:(CGFloat)alpha{ // Update the brush color brushColor[0] = red ; brushColor[1] = green ; brushColor[2] = blue ; brushColor[3] = alpha; if (initialized) { glUseProgram(program[PROGRAM_POINT].id); // 设置画笔颜色 glUniform4fv(program[PROGRAM_POINT].uniform[UNIFORM_VERTEX_COLOR], 1, brushColor); }}// Releases resources when they are not longer needed.- (void)dealloc{ // Destroy framebuffers and renderbuffers if (viewFramebuffer) { glDeleteFramebuffers(1, &viewFramebuffer); viewFramebuffer = 0; } if (viewRenderbuffer) { glDeleteRenderbuffers(1, &viewRenderbuffer); viewRenderbuffer = 0; } if (depthRenderbuffer) { glDeleteRenderbuffers(1, &depthRenderbuffer); depthRenderbuffer = 0; } // texture if (brushTexture.id) { glDeleteTextures(1, &brushTexture.id); brushTexture.id = 0; } // vbo if (vboId) { glDeleteBuffers(1, &vboId); vboId = 0; } // tear down context if ([EAGLContext currentContext] == context) [EAGLContext setCurrentContext:nil];}总结
- 优点
1.很底层,绘画速率更快,直接通过硬件的渲染,办理了上一个在iPad3硬件下绘画会有断点的bug。
2.性能更好。
- 缺点
1.暂时我还没找到 画弧线的方法。
2.更底层,API可读性太差 没有解释 根本看不懂 有解释的也没看懂几个。
3.通过已知点,重绘的速率也慢,幸亏于相对于上一种方法的慢他是可以看到绘画轨迹的，大概实用于一些特别的需求。
- 个人集成后遇到的坑
1.橡皮擦和画笔状态切换的时间回造成状态失效,缘故原由不详...办理方案:每次touchBegain的时间都再次设置一次。
2.橡皮擦状态下,擦除画笔的时间会有一个小圆点不绝跟随字迹,缘故原由不详...办理方案同上。
- 应用场景
1.一次性画一些简朴的线段,而且不做修改的环境下可以使用。
2.UI上须要做一些结果的简朴线段可以使用。
3.须要频仍修改和绘画的环境下，不发起使用。
|
