Android为了提供一个稳固的帧率输出机制，让软件层和硬件层可以以共同的频率一起工作，引入了 Vsync + TripleBuffer + Choreographer 的刷帧机制。
引入Choreographer
Choreographer 的引入，重要是共同 Vsync ，给上层 App 的渲染提供一个稳固的 Message 处置处罚的时机，也就是 Vsync 到来的时间 ，会唤醒Choreographer 来做 App 的绘制利用。
Choreographer作用
Choreographer 扮演 Android 渲染链路中承上启下的脚色。
承上：负责接收和处置处罚 App 的各种更新消息和回调，比及 Vsync 到来的时间同一处置处罚。比如会合处置处罚 Input(重要是 Input 事故的处置处罚) 、Animation(动画相干)、Traversal(包括 measure、layout、draw 等利用) ，判断卡顿掉帧环境，纪录 CallBack 耗时等
启下：负责哀求和接收 Vsync 信号，通过申请和接收vsync来驱动app刷新。
简朴明白，Choreographer + SurfaceFlinger + Vsync + TripleBuffer这一套从上到下的机制，包管了 Android App 可以以一个稳固的帧率运行，减少帧率颠簸带来的不适感。下面从源码一探究竟Choreographer 的工作逻辑。
Choreographer初始化
文件：frameworks/base/core/java/android/view/ViewRootImpl.javapublic ViewRootImpl(Context context, Display display, IWindowSession session, boolean useSfChoreographer) { ... // ViewRootImpl 初始化的时间创建Choreographer mChoreographer = useSfChoreographer ? Choreographer.getSfInstance() : Choreographer.getInstance(); ...}文件：frameworks/base/core/java/android/view/Choreographer.java// Thread local storage for the choreographer. private static final ThreadLocal<Choreographer> sThreadInstance = new ThreadLocal<Choreographer>() { @Override protected Choreographer initialValue() { // 获取当火线程的looper Looper looper = Looper.myLooper(); if (looper == null) { throw new IllegalStateException("The current thread must have a looper!"); } // 创建Choreographer 对象，source范例为app Choreographer choreographer = new Choreographer(looper, VSYNC_SOURCE_APP); if (looper == Looper.getMainLooper()) { mMainInstance = choreographer; } return choreographer; } }; private Choreographer(Looper looper, int vsyncSource) { mLooper = looper; // 初始化 FrameHandler mHandler = new FrameHandler(looper); // 初始化 DisplayEventReceiver mDisplayEventReceiver = USE_VSYNC ? new FrameDisplayEventReceiver(looper, vsyncSource) : null; mLastFrameTimeNanos = Long.MIN_VALUE; mFrameIntervalNanos = (long)(1000000000 / getRefreshRate()); // 初始化 CallbacksQueues，存放5种范例的callback mCallbackQueues = new CallbackQueue[CALLBACK_LAST + 1]; for (int i = 0; i <= CALLBACK_LAST; i++) { mCallbackQueues = new CallbackQueue(); } // b/68769804: For low FPS experiments. setFPSDivisor(SystemProperties.getInt(ThreadedRenderer.DEBUG_FPS_DIVISOR, 1)); } // 实现handleMessage 方法 private final class FrameHandler extends Handler { public FrameHandler(Looper looper) { super(looper); } @Override public void handleMessage(Message msg) { switch (msg.what) { case MSG_DO_FRAME: doFrame(System.nanoTime(), 0); break; case MSG_DO_SCHEDULE_VSYNC: doScheduleVsync(); break; case MSG_DO_SCHEDULE_CALLBACK: doScheduleCallback(msg.arg1); break; } } }我们把FrameDisplayEventReceiver 的初始化单独拿出来分析。
FrameDisplayEventReceiver初始化
文件:frameworks/base/core/java/android/view/Choreographer.java private final class FrameDisplayEventReceiver extends DisplayEventReceiver implements Runnable { private boolean mHavePendingVsync; private long mTimestampNanos; private int mFrame; public FrameDisplayEventReceiver(Looper looper, int vsyncSource) { // 实行DisplayEventReceiver 的初始化 super(looper, vsyncSource, CONFIG_CHANGED_EVENT_SUPPRESS); }文件:frameworks/base/core/java/android/view/DisplayEventReceiver.java public DisplayEventReceiver(Looper looper, int vsyncSource, int configChanged) { if (looper == null) { throw new IllegalArgumentException("looper must not be null"); } mMessageQueue = looper.getQueue(); // 通过jni调到native层 mReceiverPtr = nativeInit(new WeakReference<DisplayEventReceiver>(this), mMessageQueue, vsyncSource, configChanged); mCloseGuard.open("dispose"); }文件：frameworks/base/core/jni/android_view_DisplayEventReceiver.cppstatic jlong nativeInit(JNIEnv* env, jclass clazz, jobject receiverWeak, jobject messageQueueObj, jint vsyncSource, jint configChanged) { ... // NativeDisplayEventReceiver 继承 DisplayEventDispatcher， 实行DisplayEventDispatcher的初始化 sp<NativeDisplayEventReceiver> receiver = new NativeDisplayEventReceiver(env, receiverWeak, messageQueue, vsyncSource, configChanged); // 实行DisplayEventDispatcher：：initialize status_t status = receiver->initialize(); ...}文件：frameworks/native/libs/gui/DisplayEventDispatcher.cppDisplayEventDispatcher: isplayEventDispatcher(const sp<Looper>& looper, ISurfaceComposer::VsyncSource vsyncSource, ISurfaceComposer::ConfigChanged configChanged) : mLooper(looper), mReceiver(vsyncSource, configChanged), mWaitingForVsync(false) { ALOGV("dispatcher %p ~ Initializing display event dispatcher.", this);}status_t DisplayEventDispatcher::initialize() { status_t result = mReceiver.initCheck(); if (result) { ALOGW("Failed to initialize display event receiver, status=%d", result); return result; } if (mLooper != nullptr) { // 添加mReceiveFd 监控，同Surfaceflinger的Message添加fd类似，区别是looper在差异的线程，回调的方法也不一样 int rc = mLooper->addFd(mReceiver.getFd(), 0, Looper::EVENT_INPUT, this, NULL); if (rc < 0) { return UNKNOWN_ERROR; } } return OK;}这里告急的方法是mLooper->addFd(mReceiver.getFd(), 0, Looper::EVENT_INPUT, this, NULL)， 添加mReceiveFd 监控。那什么时间唤醒底层的loop等候呢？就是实行EventThread:: dispatchEvent，会对mSendFd进行write利用，这里接纳socket通讯，当监听到mReceiveFd 有变瞎搅时，进行唤醒，从而实行回调函数handleEvent。
文件：system/core/libutils/Looper.cppint Looper::addFd(int fd, int ident, int events, const sp<LooperCallback>& callback, void* data) {... Request request; request.fd = fd; request.ident = ident; request.events = events; request.seq = mNextRequestSeq++; request.callback = callback; request.data = data;... if (requestIndex < 0) { // 添加mReceiveFd 进行监控 int epollResult = epoll_ctl(mEpollFd.get(), EPOLL_CTL_ADD, fd, &eventItem); if (epollResult < 0) { ALOGE("Error adding epoll events for fd %d: %s", fd, strerror(errno)); return -1; } mRequests.add(fd, request);...}int Looper::pollInner(int timeoutMillis) {...int eventCount = epoll_wait(mEpollFd.get(), eventItems, EPOLL_MAX_EVENTS, timeoutMillis);...for (size_t i = 0; i < mResponses.size(); i++) { ... // 实行addFd 时参加的回调函数 int callbackResult = response.request.callback->handleEvent(fd, events, data); ... return result;}文件:frameworks/native/libs/gui/DisplayEventDispatcher.cpp int DisplayEventDispatcher::handleEvent(int, int events, void*) { if (events & (Looper::EVENT_ERROR | Looper::EVENT_HANGUP)) { ALOGE("Display event receiver pipe was closed or an error occurred. " "events=0x%x", events); return 0; // remove the callback } if (!(events & Looper::EVENT_INPUT)) { ALOGW("Received spurious callback for unhandled poll event. " "events=0x%x", events); return 1; // keep the callback } // Drain all pending events, keep the last vsync. nsecs_t vsyncTimestamp; PhysicalDisplayId vsyncDisplayId; uint32_t vsyncCount; if (processPendingEvents(&vsyncTimestamp, &vsyncDisplayId, &vsyncCount)) { ALOGV("dispatcher %p ~ Vsync pulse: timestamp=%" PRId64 ", displayId=%" ANDROID_PHYSICAL_DISPLAY_ID_FORMAT ", count=%d", this, ns2ms(vsyncTimestamp), vsyncDisplayId, vsyncCount); mWaitingForVsync = false; dispatchVsync(vsyncTimestamp, vsyncDisplayId, vsyncCount); } return 1; // keep the callback}到这里初始化完成，总结下做了哪些变乱：
- 初始化DisplayEventDispatcher，添加mReceiveFd进行监控，为vsync事故到来做回调预备
- 初始化CallbacksQueues，内里存放5种范例的callback
- 初始化FrameHandler，实现了handleMessage 方法
APP哀求Vsync

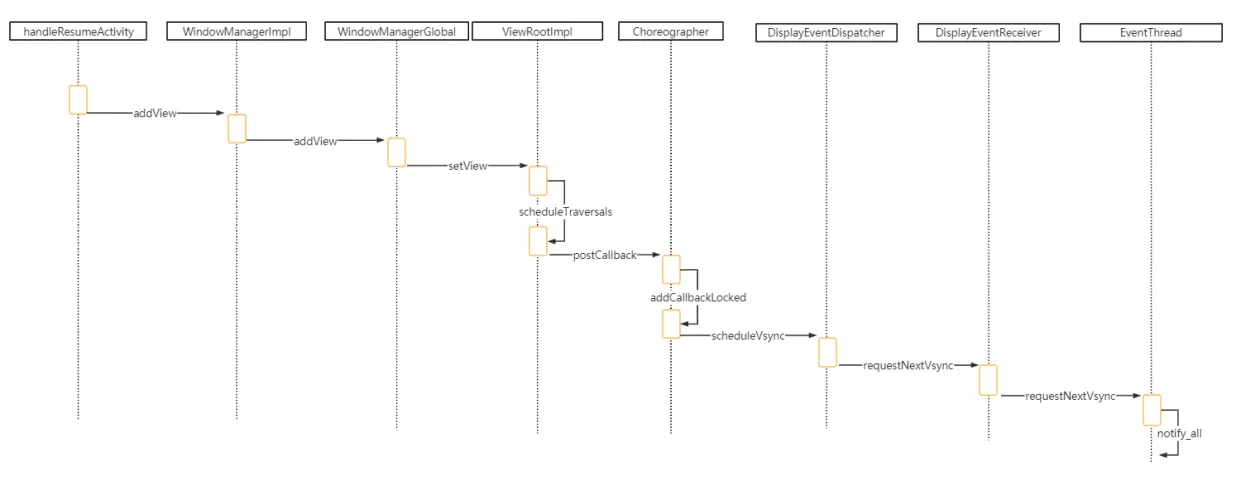

随着代码流程走到requestLayout(addView->setView->requestLayout->schduleTraversals)表现app要哀求vsync刷帧，具体看下哀求颠末
文件：frameworks/base/core/java/android/view/ViewRootImpl.java void scheduleTraversals() { if (!mTraversalScheduled) { mTraversalScheduled = true; mTraversalBarrier = mHandler.getLooper().getQueue().postSyncBarrier(); // 添加CALLBACK_TRAVERSAL 范例的回调 mChoreographer.postCallback( Choreographer.CALLBACK_TRAVERSAL, mTraversalRunnable, null); notifyRendererOfFramePending(); pokeDrawLockIfNeeded(); } }文件： frameworks/base/core/java/android/view/Choreographer.java private void postCallbackDelayedInternal(int callbackType, Object action, Object token, long delayMillis) { if (DEBUG_FRAMES) { Log.d(TAG, " ostCallback: type=" + callbackType + ", action=" + action + ", token=" + token + ", delayMillis=" + delayMillis); } synchronized (mLock) { final long now = SystemClock.uptimeMillis(); final long dueTime = now + delayMillis; // mCallbackQueues[CALLBACK_TRAVERSAL] 队列添加一个回调 mCallbackQueues[callbackType].addCallbackLocked(dueTime, action, token); if (dueTime <= now) { // dueTime == now ，从这里进来 scheduleFrameLocked(now); } else { Message msg = mHandler.obtainMessage(MSG_DO_SCHEDULE_CALLBACK, action); msg.arg1 = callbackType; msg.setAsynchronous(true); mHandler.sendMessageAtTime(msg, dueTime); } } }// CallbackRecord 是个单链表，有3个成员，dueTime，action，token和1个next指针// 将回调参加到当前的链表中public void addCallbackLocked(long dueTime, Object action, Object token) { CallbackRecord callback = obtainCallbackLocked(dueTime, action, token); CallbackRecord entry = mHead; if (entry == null) { mHead = callback; return; } if (dueTime < entry.dueTime) { callback.next = entry; mHead = callback; return; } while (entry.next != null) { if (dueTime < entry.next.dueTime) { callback.next = entry.next; break; } entry = entry.next; } entry.next = callback; }// obtainCallbackLocked 的作用是假如当前pool内里没有回调，则新创建一个，假如有，则返回当前的回调并将mCallbackPool 指向下一个回调private CallbackRecord obtainCallbackLocked(long dueTime, Object action, Object token) { CallbackRecord callback = mCallbackPool; if (callback == null) { callback = new CallbackRecord(); } else { mCallbackPool = callback.next; callback.next = null; } callback.dueTime = dueTime; callback.action = action; callback.token = token; return callback; } private void scheduleFrameLocked(long now) { if (!mFrameScheduled) { mFrameScheduled = true; if (USE_VSYNC) { if (DEBUG_FRAMES) { Log.d(TAG, "Scheduling next frame on vsync."); } // 判断looper是不是在主线程，这两个方法殊途同归，都会实行scheduleVsyncLocked if (isRunningOnLooperThreadLocked()) { scheduleVsyncLocked(); } else { Message msg = mHandler.obtainMessage(MSG_DO_SCHEDULE_VSYNC); msg.setAsynchronous(true); mHandler.sendMessageAtFrontOfQueue(msg); } ... } }private void scheduleVsyncLocked() { mDisplayEventReceiver.scheduleVsync(); }文件：frameworks/native/libs/gui/DisplayEventDispatcher.cppstatus_t DisplayEventDispatcher::scheduleVsync() { if (!mWaitingForVsync) { ... status_t status = mReceiver.requestNextVsync(); if (status) { ALOGW("Failed to request next vsync, status=%d", status); return status; } mWaitingForVsync = true; } return OK;}文件：frameworks/native/libs/gui/DisplayEventReceiver.cpp status_t DisplayEventReceiver::requestNextVsync() { if (mEventConnection != nullptr) { mEventConnection->requestNextVsync(); return NO_ERROR; } return NO_INIT;}文件：frameworks/native/services/surfaceflinger/Scheduler/EventThread.cpp void EventThreadConnection::requestNextVsync() { ATRACE_NAME("requestNextVsync"); mEventThread->requestNextVsync(this);}void EventThread::requestNextVsync(const sp<EventThreadConnection>& connection) { if (connection->resyncCallback) { connection->resyncCallback(); } std::lock_guard<std::mutex> lock(mMutex); if (connection->vsyncRequest == VSyncRequest::None) { connection->vsyncRequest = VSyncRequest::Single; mCondition.notify_all(); }}跟着代码流程可以看到，终极调到app EventThread的requestNextVsync，将connection->vsyncRequest更新为Single，并唤醒mCondition的wait，用一副图表现。
APP接收Vsync
sw-vsync分发必要具备两个条件：1. 有哀求vsync的动作 2. TimerDispatch线程定时时间到，会make一个vsync event。在当前帧哀求vsync，在下一帧创造vsync event后就会回调给app。
文件：frameworks/native/services/surfaceflinger/Scheduler/EventThread.cppvoid EventThread::threadMain(std::unique_lock<std::mutex>& lock) {DisplayEventConsumers consumers; while (mState != State: uit) { std: ptional<DisplayEventReceiver::Event> event; // Determine next event to dispatch. if (!mPendingEvents.empty()) { event = mPendingEvents.front(); mPendingEvents.pop_front(); ... if (!consumers.empty()) { // 开始分发vsync event，假如是app eventthread就分发给app dispatchEvent(*event, consumers); consumers.clear(); }...}tatus_t EventThreadConnection::postEvent(const DisplayEventReceiver::Event& event) { ssize_t size = DisplayEventReceiver::sendEvents(&mChannel, &event, 1); return size < 0 ? status_t(size) : status_t(NO_ERROR);}文件：frameworks/native/libs/gui/DisplayEventReceiver.cppssize_t DisplayEventReceiver::sendEvents(gui::BitTube* dataChannel, Event const* events, size_t count){ return gui::BitTube::sendObjects(dataChannel, events, count);}文件：frameworks/native/libs/gui/BitTube.cppssize_t BitTube::sendObjects(BitTube* tube, void const* events, size_t count, size_t objSize) { const char* vaddr = reinterpret_cast<const char*>(events); ssize_t size = tube->write(vaddr, count * objSize); // should never happen because of SOCK_SEQPACKET LOG_ALWAYS_FATAL_IF((size >= 0) && (size % static_cast<ssize_t>(objSize)), "BitTube::sendObjects(count=%zu, size=%zu), res=%zd (partial events were " "sent!)", count, objSize, size); // ALOGE_IF(size<0, "error %d sending %d events", size, count); return size < 0 ? size : size / static_cast<ssize_t>(objSize);}ssize_t BitTube::write(void const* vaddr, size_t size) { ssize_t err, len; do { // 对端mReceiveFd，会唤醒epoll_wait len = ::send(mSendFd, vaddr, size, MSG_DONTWAIT | MSG_NOSIGNAL); // cannot return less than size, since we're using SOCK_SEQPACKET err = len < 0 ? errno : 0; } while (err == EINTR); return err == 0 ? len : -err;}对端mReceiveFd 被添加到epllo fd进行监听，当变瞎搅暂时就会实行回调函数handleEvent
文件：frameworks/native/libs/gui/DisplayEventDispatcher.cppint DisplayEventDispatcher::handleEvent(int, int events, void*) { ... nsecs_t vsyncTimestamp; PhysicalDisplayId vsyncDisplayId; uint32_t vsyncCount; // 得到发送过来的vsync event if (processPendingEvents(&vsyncTimestamp, &vsyncDisplayId, &vsyncCount)) { ALOGV("dispatcher %p ~ Vsync pulse: timestamp=%" PRId64 ", displayId=%" ANDROID_PHYSICAL_DISPLAY_ID_FORMAT ", count=%d", this, ns2ms(vsyncTimestamp), vsyncDisplayId, vsyncCount); mWaitingForVsync = false; // 处置处罚vsync event dispatchVsync(vsyncTimestamp, vsyncDisplayId, vsyncCount); } return 1; // keep the callback}bool DisplayEventDispatcher::processPendingEvents(nsecs_t* outTimestamp, PhysicalDisplayId* outDisplayId, uint32_t* outCount) { bool gotVsync = false; DisplayEventReceiver::Event buf[EVENT_BUFFER_SIZE]; ssize_t n; // 获取发送过来的vsync event while ((n = mReceiver.getEvents(buf, EVENT_BUFFER_SIZE)) > 0) { ALOGV("dispatcher %p ~ Read %d events.", this, int(n)); for (ssize_t i = 0; i < n; i++) { const DisplayEventReceiver::Event& ev = buf; switch (ev.header.type) { case DisplayEventReceiver:ISPLAY_EVENT_VSYNC: // Later vsync events will just overwrite the info from earlier // ones. That's fine, we only care about the most recent. gotVsync = true; *outTimestamp = ev.header.timestamp; *outDisplayId = ev.header.displayId; *outCount = ev.vsync.count; break; ... return gotVsync;}文件：frameworks/base/core/jni/android_view_DisplayEventReceiver.cppvoid NativeDisplayEventReceiver::dispatchVsync(nsecs_t timestamp, PhysicalDisplayId displayId, uint32_t count) { JNIEnv* env = AndroidRuntime::getJNIEnv(); ScopedLocalRef<jobject> receiverObj(env, jniGetReferent(env, mReceiverWeakGlobal)); if (receiverObj.get()) { ALOGV("receiver %p ~ Invoking vsync handler.", this); // 从jni调到java方法 env->CallVoidMethod(receiverObj.get(), gDisplayEventReceiverClassInfo.dispatchVsync, timestamp, displayId, count); ALOGV("receiver %p ~ Returned from vsync handler.", this); } mMessageQueue->raiseAndClearException(env, "dispatchVsync");}文件：frameworks/base/core/java/android/view/DisplayEventReceiver.java private void dispatchVsync(long timestampNanos, long physicalDisplayId, int frame) { onVsync(timestampNanos, physicalDisplayId, frame); }文件：frameworks/base/core/java/android/view/Choreographer.javapublic void onVsync(long timestampNanos, long physicalDisplayId, int frame) { ... mTimestampNanos = timestampNanos; mFrame = frame; // obtain 会new message，callback为FrameDisplayEventReceiver对象，实现了Runnable的方法 Message msg = Message.obtain(mHandler, this); msg.setAsynchronous(true); // 发送message，唤醒loop wait mHandler.sendMessageAtTime(msg, timestampNanos / TimeUtils.NANOS_PER_MS); }文件：frameworks/base/core/java/android/os/Message.java public static Message obtain(Handler h, Runnable callback) { Message m = obtain(); m.target = h; m.callback = callback; return m; }文件：frameworks/base/core/java/android/os/Handler.java public void dispatchMessage(@NonNull Message msg) { if (msg.callback != null) { // callback 不为空，走handleCallback handleCallback(msg); } else { if (mCallback != null) { if (mCallback.handleMessage(msg)) { return; } } handleMessage(msg); } } private static void handleCallback(Message message) { // 实行FrameDisplayEventReceiver的run方法 message.callback.run(); }文件：frameworks/base/core/java/android/view/Choreographer.java public void run() { mHavePendingVsync = false; // 处置处罚 App 的各种更新消息和回调 doFrame(mTimestampNanos, mFrame); } }从链路来看，末了会调到doFrame来处置处罚 App 的各种更新消息和回调，用个图总结下。
APP处置处罚Vsync
app接收到vsync信号后，就开始实行各种更新消息和回调，重要的处置处罚逻辑在doFrame函数。
文件：frameworks/base/core/java/android/view/Choreographer.javavoid doFrame(long frameTimeNanos, int frame) { // 处置处罚掉帧逻辑，临时不看 ... try { Trace.traceBegin(Trace.TRACE_TAG_VIEW, "Choreographer#doFrame"); AnimationUtils.lockAnimationClock(frameTimeNanos / TimeUtils.NANOS_PER_MS); // 纪录input开始时间 mFrameInfo.markInputHandlingStart(); // 回调input方法 doCallbacks(Choreographer.CALLBACK_INPUT, frameTimeNanos); //纪录动画开始时间 mFrameInfo.markAnimationsStart(); //回变动画方法 doCallbacks(Choreographer.CALLBACK_ANIMATION, frameTimeNanos); doCallbacks(Choreographer.CALLBACK_INSETS_ANIMATION, frameTimeNanos); // 纪录Traversal开始时间 mFrameInfo.markPerformTraversalsStart(); // 回调Traversal 方法，重点看下 doCallbacks(Choreographer.CALLBACK_TRAVERSAL, frameTimeNanos); doCallbacks(Choreographer.CALLBACK_COMMIT, frameTimeNanos); } finally { AnimationUtils.unlockAnimationClock(); Trace.traceEnd(Trace.TRACE_TAG_VIEW); } if (DEBUG_FRAMES) { final long endNanos = System.nanoTime(); Log.d(TAG, "Frame " + frame + ": Finished, took " + (endNanos - startNanos) * 0.000001f + " ms, latency " + (startNanos - frameTimeNanos) * 0.000001f + " ms."); } } void doCallbacks(int callbackType, long frameTimeNanos) { ... //取出对应的callback，还记得前面是通过addCallbackLocked将callback参加到链表内里，现将对应的callback取出 callbacks = mCallbackQueues[callbackType].extractDueCallbacksLocked( now / TimeUtils.NANOS_PER_MS); if (callbacks == null) { return; } mCallbacksRunning = true; ... try { Trace.traceBegin(Trace.TRACE_TAG_VIEW, CALLBACK_TRACE_TITLES[callbackType]); for (CallbackRecord c = callbacks; c != null; c = c.next) { if (DEBUG_FRAMES) { Log.d(TAG, "RunCallback: type=" + callbackType + ", action=" + c.action + ", token=" + c.token + ", latencyMillis=" + (SystemClock.uptimeMillis() - c.dueTime)); } // 实行CallbackRecord的run方法 c.run(frameTimeNanos); } ... Trace.traceEnd(Trace.TRACE_TAG_VIEW); } } private static final class CallbackRecord { public CallbackRecord next; public long dueTime; public Object action; // Runnable or FrameCallback public Object token; @UnsupportedAppUsage public void run(long frameTimeNanos) { if (token == FRAME_CALLBACK_TOKEN) { ((FrameCallback)action).doFrame(frameTimeNanos); } else { // 实行mTraversalRunnable的run方法，在scheduleTraversals内里通过postCallback参加callback链表 ((Runnable)action).run(); } } }文件：frameworks/base/core/java/android/view/ViewRootImpl.java final class TraversalRunnable implements Runnable { @Override public void run() { //末了回调到这个方法，处置处罚measure、layout、draw doTraversal(); } } private void performTraversals() {... performMeasure(childWidthMeasureSpec, childHeightMeasureSpec);... performLayout(lp, mWidth, mHeight);... performDraw();...}可以看到当app接收到vsync信号后就开始处置处罚各种回调的方法，由于有些内容并不是很熟悉，也就没能继承分析下去，文章只是分析了大致的流程，具体的细节碰到题目再分析。
文章从app哀求vsync，eventThread分发vsync，再到app处置处罚vsync，分析了大致的流程，也印证了文章开始说的Choreographer作用： 1. 负责哀求和接收 Vsync 信号 2. 负责接收和处置处罚 App 的各种更新消息和回调，比及 Vsync 到来的时间同一处置处罚。 |
