iOS widget 小组件开辟
Github地点
项目选择对应语言项目小组件部分 Github地点 https://github.com/HahnLoving/iOS_Study
iOS 多个widget调试题目
iOS 多个widget调试题目
https://www.jianshu.com/p/d0993b2c6e34
iOS widget 小组件 秒级革新
https://www.jianshu.com/p/40d631f32260
创建项目
widget 代码阐明
Provider
struct Provider: TimelineProvider { // 占位视图，比方网络哀求失败、发生未知错误、第一次展示小组件都会展示这个view func placeholder(in context: Context) -> SimpleEntry { SimpleEntry(date: Date()) } // 界说Widget预览中怎样展示，以是提供默认值要在这里 func getSnapshot(in context: Context, completion: @escaping (SimpleEntry) -> ()) { let entry = SimpleEntry(date: Date()) completion(entry) } // 决定 Widget 何时革新 func getTimeline(in context: Context, completion: @escaping (Timeline<Entry>) -> ()) { var entries: [SimpleEntry] = [] // Generate a timeline consisting of five entries an hour apart, starting from the current date. let currentDate = Date() for hourOffset in 0 ..< 5 { let entryDate = Calendar.current.date(byAdding: .hour, value: hourOffset, to: currentDate)! let entry = SimpleEntry(date: entryDate) entries.append(entry) } let timeline = Timeline(entries: entries, policy: .atEnd) completion(timeline) }}SimpleEntry
// 渲染 Widget 所需的数据模子，需要服从TimelineEntry协议struct SimpleEntry: TimelineEntry { let date: Date}MainWidgetEntryView
// 渲染的viewstruct MainWidgetEntryView : View { var entry: Provider.Entry var body: some View { Text(entry.date, style: .time) }}MainWidget
@mainstruct MainWidget: Widget { // 主件唯一标识符 let kind: String = "MainWidget" var body: some WidgetConfiguration { StaticConfiguration(kind: kind, provider: Provider()) { entry in MainWidgetEntryView(entry: entry) } // 标题 .configurationDisplayName("My Widget") // 详情 .description("This is an example widget.") // 摆列设置 .supportedFamilies([.systemMedium, .systemSmall, .systemLarge]) }}MainWidget_Previews

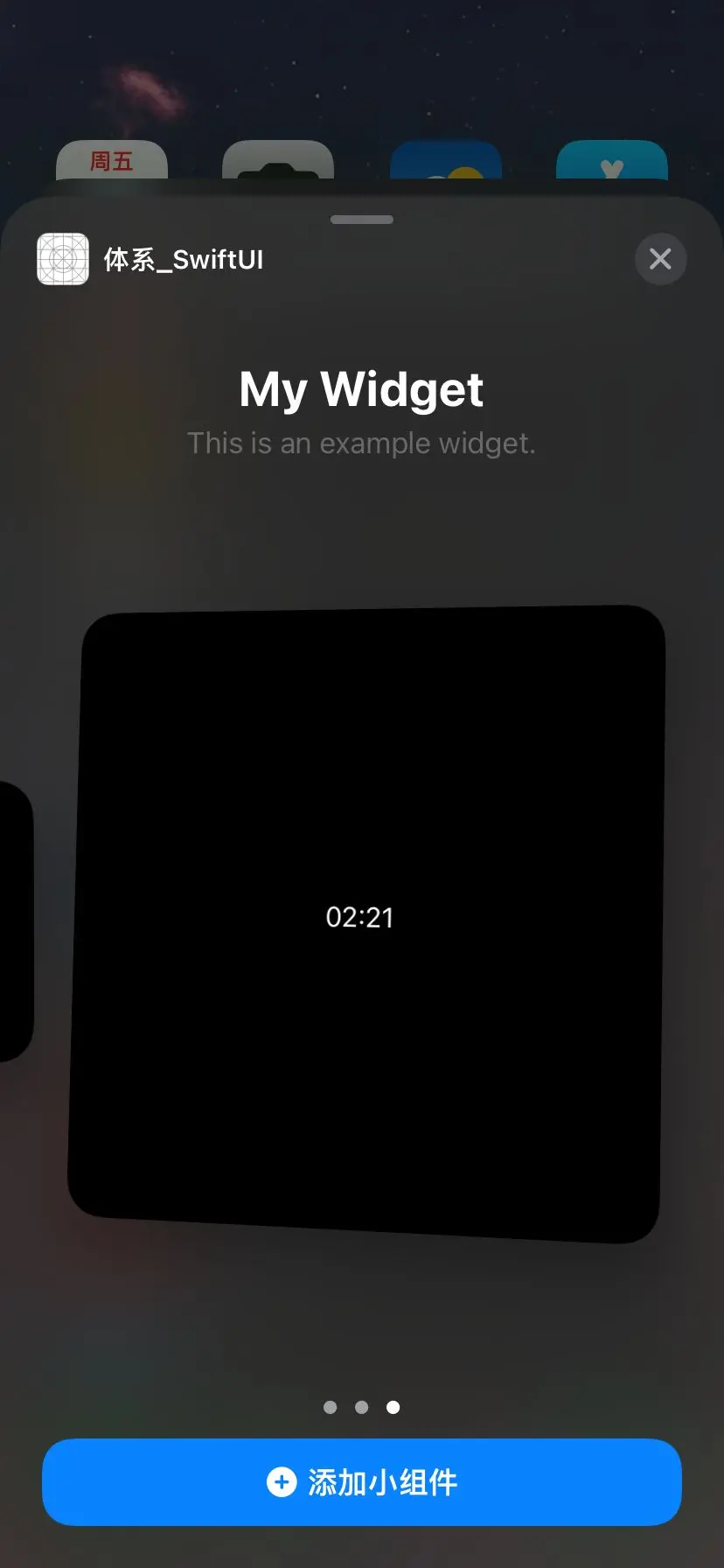

// SwiftUI Xcode 测试预览视图struct MainWidget_Previews: PreviewProvider { static var previews: some View { MainWidgetEntryView(entry: SimpleEntry(date: Date())) .previewContext(WidgetPreviewContext(family: .systemSmall)) }}效果图
widget 分组
widget 有多组和单组区别。
单组包罗 小，中，大，特大(iOS 15)
多组包罗 小，小，小

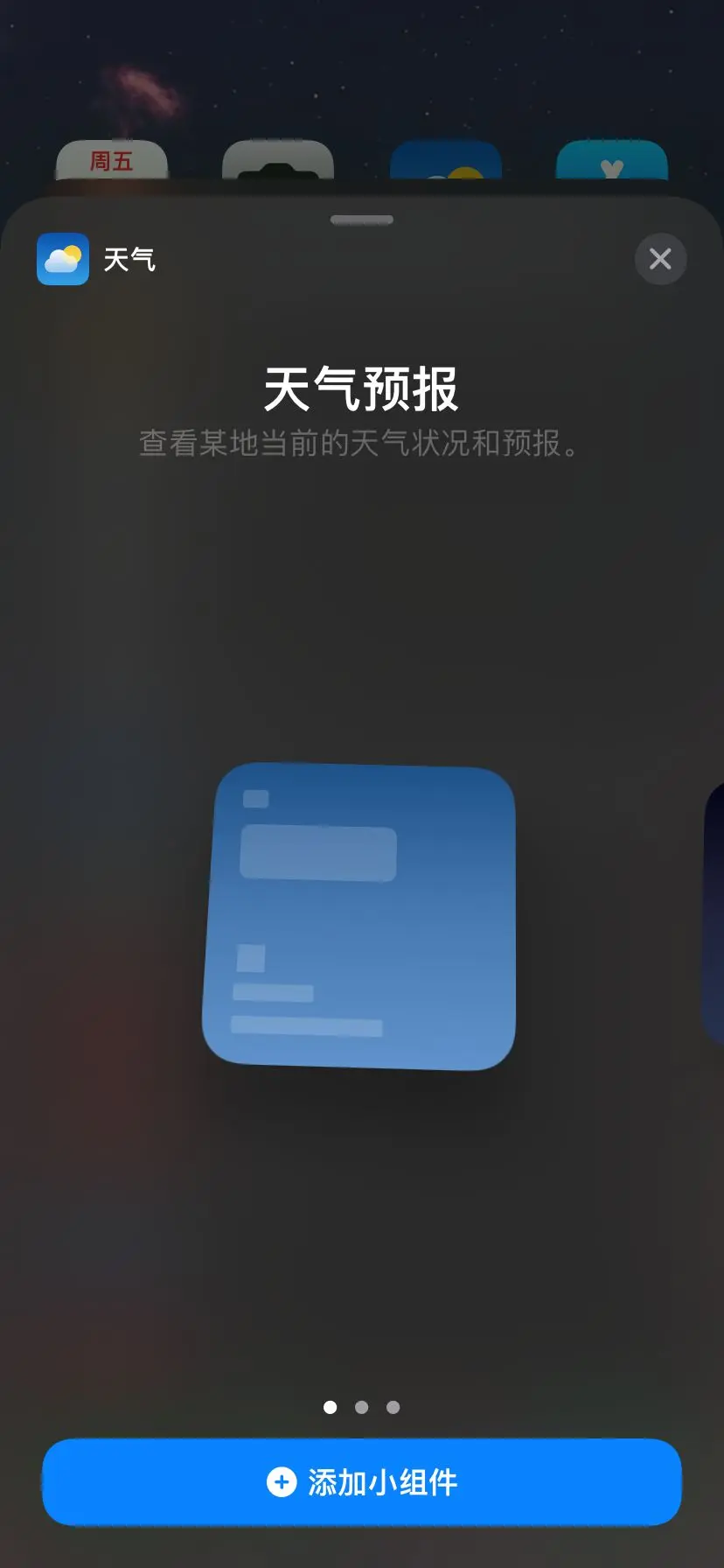

单组的例子如体系的天气widget包罗小，中，大三个组件

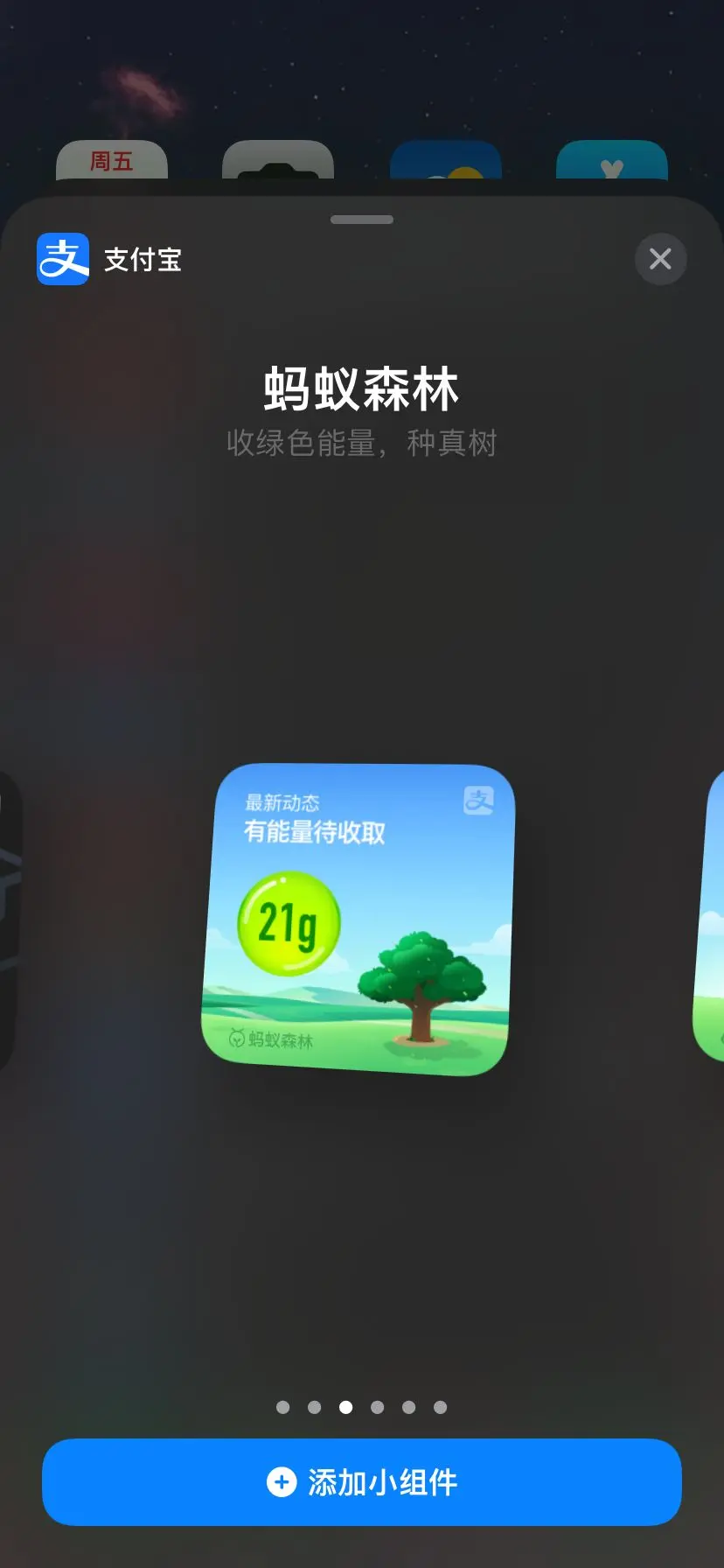

多组以付出宝为例子。包罗两个小的组件
单组件适配开辟
MainWidgetEntryView
// 渲染的viewstruct MainWidgetEntryView : View { var entry: Provider.Entry // 判定小组件的范例 @Environment(\.widgetFamily) var family: WidgetFamily var body: some View {// Text(entry.date, style: .time) switch family { case .systemSmall: VStack(alignment: .center, spacing: 0) { Text("小") Spacer().frame(height: 20) Text(entry.date, style: .time) } case .systemMedium: VStack(alignment: .center, spacing: 0) { Text("中") Spacer().frame(height: 20) Text(entry.date, style: .time) } default: VStack(alignment: .center, spacing: 0) { Text("大") Spacer().frame(height: 20) Text(entry.date, style: .time) } } }}效果图
多组件开辟 WidgetBundle
多组件开辟使用了 WidgetBundle
下面用了以下5个案例教学多组件开辟
1.网络哀求 NetWorkData
2.网络图片 NetWorkImage
3.编辑小组件 Edit
4.和app当地数据举行交互和点击交互 AppData
MainWidget
先表明全部代码
import WidgetKitimport SwiftUIimport Intentsstruct SimpleEntry: TimelineEntry { public let date: Date}struct PlaceholderView : View { //这里是PlaceholderView - 提示用户选择部件功能 var body: some View { Text(" lace Holder") }}@mainstruct MainWidget: WidgetBundle { @WidgetBundleBuilder var body: some Widget {// OneWordWidget()// FristWidget(title: "hahn", desc: "hahn1")// CountDownWidget()// Demo(title: "Demo", desc: "Demo") NetWorkData(title: "网络哀求小组件", desc: "网络哀求小组件列表") NetWorkImage(title: "网络图片小组件", desc: "网络图片小组件列表") Edit(title: "编辑小组件", desc: "编辑小组件列表") AppData(title: "app数据交互小组件", desc: "app数据交互小组件列表") }}新建分组的widget
新建SwiftUI文件
新建 SirKit Intent Definition File 文件
记得勾选这两个，否则会无法编辑的

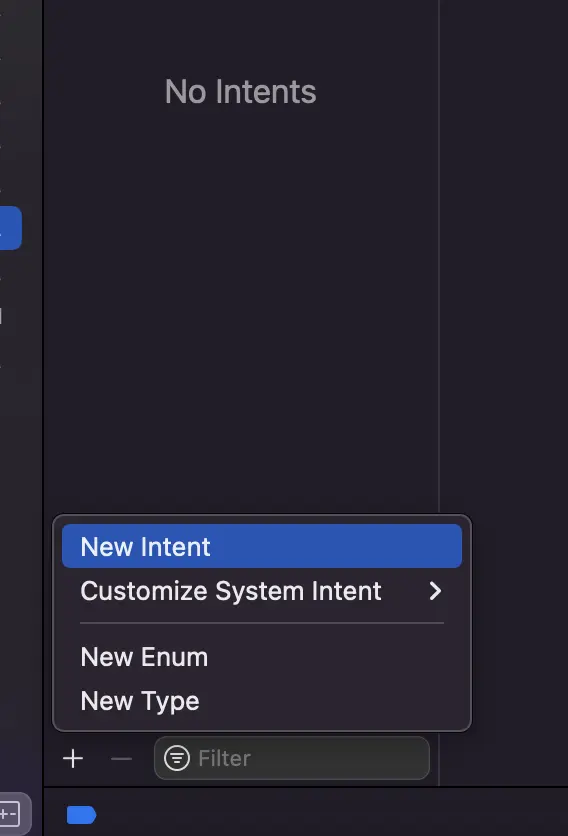

新建 Intent

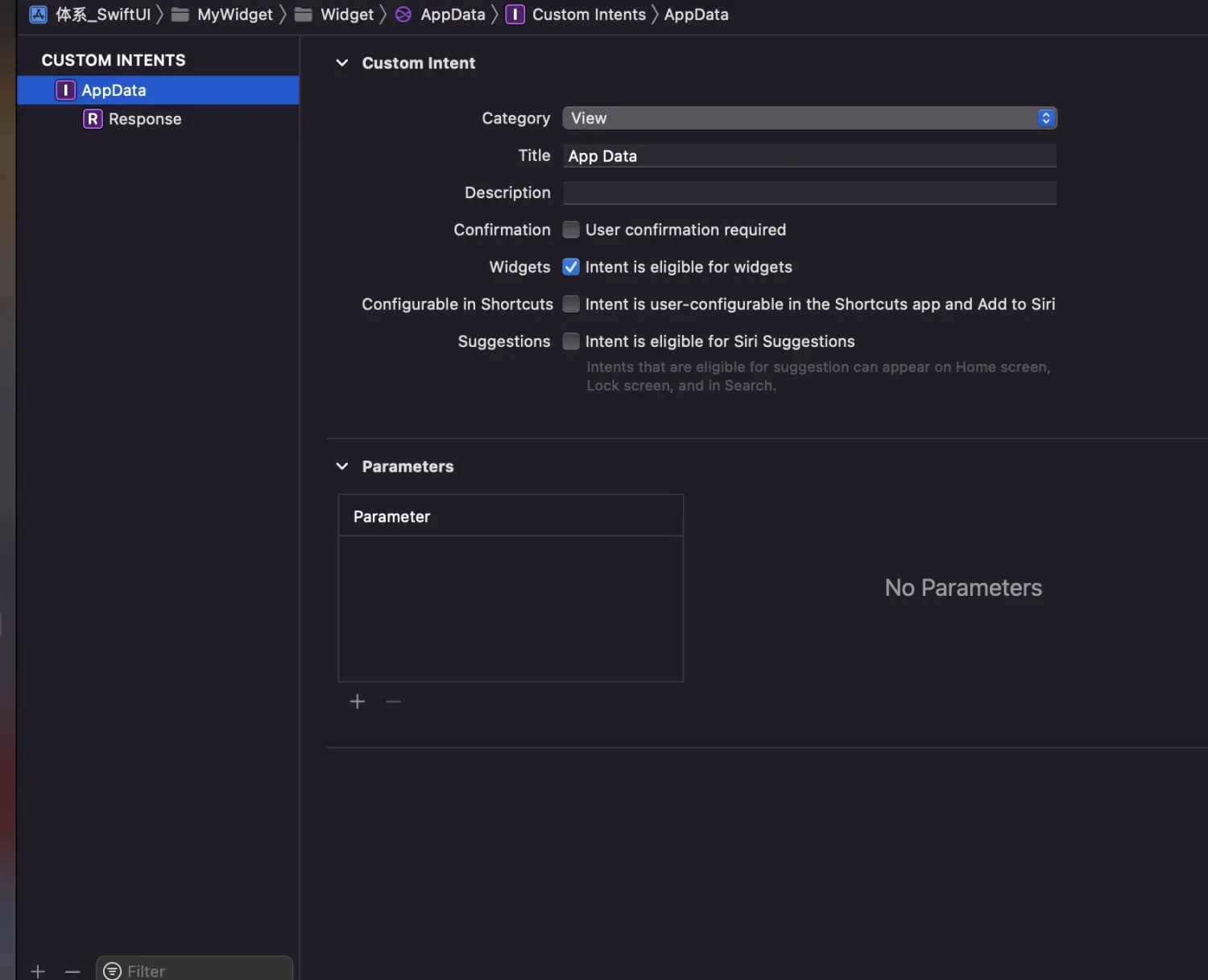

Title就是你对应Widget 名字
Category 选择View
勾Widgets
网络哀求 NetWorkData
先按照上面的步调创建 NetWorkData 的widget 和 Intent文件
注意需要info.plist设置可以网络哀求。如果主项目没有网络哀求，先做一次网络哀求。
我这里使用了Moya 框架举行Api 哀求。
为widget 扩展添加pod
platform :ios, '14.0'use_frameworks!inhibit_all_warnings!source 'https://github.com/CocoaPods/Specs.git'target 'StudySwiftUI' do# swiftend# Extension 名字 在Targets内里可以查察名字target 'MainWidgetExtension' do pod 'ObjectMapper' pod 'Moya' pod 'ObjectMapper' pod 'HandyJSON' pod 'SwiftyJSON'end哀求的json 布局如下
{ "items":[ { "title":"Quiz for Designing", "subTitle":"834 questions in tottal", "icon":"tlIconDesign1", "correctRate":80, "submit":48, "starCount":4 }, { "title":"Quiz for Coding", "subTitle":"1000 questions in tottal", "icon":"tlIconMobile1", "correctRate":98, "submit":68, "starCount":5 }, { "title":"Quiz for Officing", "subTitle":"569 questions in tottal", "icon":"tlIconOffice1", "correctRate":60, "submit":43, "starCount":3 }, { "title":"Quiz for Painting", "subTitle":"321 questions in tottal", "icon":"tlIconDesign2", "correctRate":87, "submit":48, "starCount":5 } ]}使用HandyJSON 创建Model
import Foundationimport HandyJSONstruct ZModel: HandyJSON { var items: [ZQuiz] = []}struct ZQuiz: HandyJSON { var title : String = "" var subTitle : String = "" var icon : String = "" var correctRate : Int = 0 var submit : Int = 0 var starCount : Int = 0}我们取json数组第一个字典的title渲染出来
NetWorkData.swift
import WidgetKitimport SwiftUIimport Intentsstruct NetWorkDataProvider: IntentTimelineProvider { func placeholder(in context: Context) -> NetWorkDataEntry { NetWorkDataEntry(date: Date(), configuration: NetWorkDataIntent(), displaySize: context.displaySize, model: ZModel()) } // 界说Widget预览中怎样展示，以是提供默认值要在这里 func getSnapshot(for configuration: NetWorkDataIntent, in context: Context, completion: @escaping (NetWorkDataEntry) -> ()) { let entry = NetWorkDataEntry(date: Date(), configuration: configuration, displaySize: context.displaySize, model: ZModel()) completion(entry) } // 决定 Widget 何时革新 func getTimeline(for configuration: NetWorkDataIntent, in context: Context, completion: @escaping (Timeline<Entry>) -> ()) { // API哀求 NetWorkRequest(API.getQuizListApi, modelType: ZModel.self) { (model, responseModel) in // 每隔2个小时革新。 let entry = NetWorkDataEntry(date: Date(), configuration: configuration, displaySize: context.displaySize, model: model) // refresh the data every two hours let expireDate = Calendar.current.date(byAdding: .hour, value: 2, to: Date()) ?? Date() let timeline = Timeline(entries: [entry], policy: .after(expireDate)) completion(timeline) } failureCallback: { (responseModel) in } }}struct NetWorkDataEntry: TimelineEntry { let date: Date let configuration: NetWorkDataIntent let displaySize: CGSize let model: ZModel}struct NetWorkDataEntryView : View { var entry: NetWorkDataProvider.Entry var body: some View { Text(entry.model.items.first?.title ?? "0") }}// 单个//@mainstruct NetWorkData: Widget { let kind: String = "NetWorkData" var title: String = "" var desc: String = "" var body: some WidgetConfiguration { IntentConfiguration(kind: kind, intent: NetWorkDataIntent.self, provider: NetWorkDataProvider()) { entry in NetWorkDataEntryView(entry: entry) } .configurationDisplayName(title) .description(desc) .supportedFamilies([.systemMedium, .systemSmall])// .supportedFamilies([.systemMedium, .systemLarge, .systemSmall]) }}效果

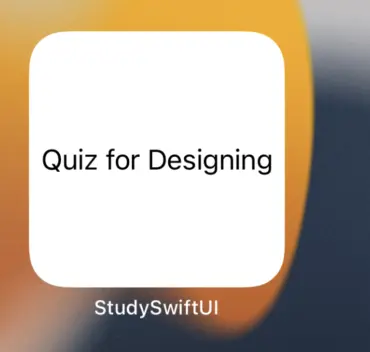

渲染出来第一个元素的title
网络图片 NetWorkImage
先按照上面的步调创建 NetWorkImage 的widget 和 Intent文件
注意小组件目前是不支持异步下载的和动画的
以是图片是需要同步下载的
WidgetImageLoader 先对图片下载封装
import Foundationimport SwiftUIenum WidgetError: Error { case netError //网络哀求堕落 case dataError //数据剖析错误}/* 由于不支持异步加载图片 以是临时在网络哀求好之后，直接下载好全部图片 使用NSCache暂存图片 */class WidgetImageLoader { static var shareLoader = WidgetImageLoader() private var cache = NSCache<NSURL, UIImage>() /// 下载单张图片 /// - Parameters: /// - imageUrl: 图片URL /// - completion: 乐成的回调 func downLoadImage(imageUrl: String?,completion: @escaping (Result<Image, WidgetError>) -> Void) { if let imageUrl = imageUrl { if let cacheImage = self.cache.object(forKey: NSURL(string: imageUrl)!) { completion(.success(Image(uiImage: cacheImage))) } else { URLSession.shared.dataTask(with: URL(string: imageUrl)!) { (data, response, error) in if let data = data, let image = UIImage(data: data) { self.cache.setObject(image, forKey: NSURL(string: imageUrl)!) completion(.success(Image(uiImage: image))) } else { completion(.failure(WidgetError.netError)) } }.resume() } } else { completion(.failure(WidgetError.dataError)) } } /// 批量下载图片 /// - Parameters: /// - imageAry: 图片数组聚集 /// - placeHolder: 占位图，可传可不传 /// - completion: 乐成回调 func downLoadImage(imageAry:[String],placeHolder:Image?,completion: @escaping (Result<[Image], WidgetError>) -> Void) { let group ispatchGroup = DispatchGroup() var array = [Image]() for image in imageAry { group.enter() self.downLoadImage(imageUrl: image) { result in let image : Image if case .success(let response) = result { image = response } else { image = placeHolder ?? Image("") } array.append(image) group.leave() } } group.notify(queue: DispatchQueue.main) { completion(.success(array)) } } /// 获取image /// - Parameters: /// - imageUrl: 图片地点 /// - placeHolderImage: 占位图，请尽量传入 /// - Returns: 返回效果 func getImage(_ imageUrl:String, _ placeHolderImage:UIImage?) -> UIImage { if let cacheImage = self.cache.object(forKey: NSURL(string: imageUrl)!) { return cacheImage } else { if let cacheImag = placeHolderImage { return cacheImag } else { return UIImage() } } }}NetWorkImage
import WidgetKitimport SwiftUIimport Intentsstruct NetWorkImageProvider: IntentTimelineProvider { var img = Image("widget_background_test") func placeholder(in context: Context) -> NetWorkImageEntry { NetWorkImageEntry(date: Date(), configuration: NetWorkImageIntent(), displaySize: context.displaySize, img: img) } // 界说Widget预览中怎样展示，以是提供默认值要在这里 func getSnapshot(for configuration: NetWorkImageIntent, in context: Context, completion: @escaping (NetWorkImageEntry) -> ()) { let entry = NetWorkImageEntry(date: Date(), configuration: configuration, displaySize: context.displaySize, img: img) completion(entry) } // 决定 Widget 何时革新 func getTimeline(for configuration: NetWorkImageIntent, in context: Context, completion: @escaping (Timeline<Entry>) -> ()) { var img = Image("widget_background_test") // 占位图 WidgetImageLoader.shareLoader.downLoadImage(imageUrl: "https://lmg.jj20.com/up/allimg/tx18/0217202027012.jpg") { result in switch result { case .success(let image): print("乐成 = \(image)") img = image // 每隔2个小时革新。 let entry = NetWorkImageEntry(date: Date(), configuration: configuration, displaySize: context.displaySize,img: img) // refresh the data every two hours let expireDate = Calendar.current.date(byAdding: .hour, value: 2, to: Date()) ?? Date() let timeline = Timeline(entries: [entry], policy: .after(expireDate)) completion(timeline) case .failure(let error): print("失败 = \(error)") } } }}struct NetWorkImageEntry: TimelineEntry { let date: Date let configuration: NetWorkImageIntent let displaySize: CGSize let img: Image}struct NetWorkImageEntryView : View { var entry: NetWorkImageProvider.Entry var body: some View { entry.img .resizable() .frame(width: entry.displaySize.width, height: entry.displaySize.height, alignment: .center) }}// 单个//@mainstruct NetWorkImage: Widget { let kind: String = "NetWorkImage" var title: String = "" var desc: String = "" var body: some WidgetConfiguration { IntentConfiguration(kind: kind, intent: NetWorkImageIntent.self, provider: NetWorkImageProvider()) { entry in NetWorkImageEntryView(entry: entry) } .configurationDisplayName(title) .description(desc) .supportedFamilies([.systemMedium, .systemSmall])// .supportedFamilies([.systemMedium, .systemLarge, .systemSmall]) }}效果
编辑小组件 Edit
先按照上面的步调创建 Edit 的widget 和 Intent文件
这里需要注意要Intent文件一个勾上主项目和你widget，否则小组件编辑无法载入。
在Edit Intent文件创建title字段
Edit
import WidgetKitimport SwiftUIimport Intentsstruct EditProvider: IntentTimelineProvider { func placeholder(in context: Context) -> EditEntry { EditEntry(date: Date(), configuration: EditIntent()) } // typealias Entry = EditEntry func getSnapshot(for configuration: EditIntent, in context: Context, completion: @escaping (EditEntry) -> Void) { let entry = EditEntry(date: Date(), configuration: configuration) completion(entry) } func getTimeline(for configuration: EditIntent, in context: Context, completion: @escaping (Timeline<Entry>) -> Void) { let entry = EditEntry(date: Date(), configuration: configuration) // refresh the data every two hours let expireDate = Calendar.current.date(byAdding: .hour, value: 2, to: Date()) ?? Date() let timeline = Timeline(entries: [entry], policy: .after(expireDate)) completion(timeline) }}struct EditEntry: TimelineEntry { public let date: Date let configuration: EditIntent}struct EditEntryView : View { //这里是Widget的范例判定 var entry: EditProvider.Entry @ViewBuilder var body: some View { VStack(alignment: .center) { if entry.configuration.title == "请编辑小组件" { Text("请编辑小组件吧") .font(.headline) .foregroundColor(Color.gray) }else { Text(entry.configuration.title ?? "") .font(.headline) .foregroundColor(Color.gray) } } .padding(.all) } }struct Edit: Widget { private let kind: String = "Edit" var title: String = "" var desc: String = "" public var body: some WidgetConfiguration { IntentConfiguration(kind: kind, intent: EditIntent.self, provider: EditProvider()) { entry in EditEntryView(entry: entry) } .configurationDisplayName(title) .description(desc) .supportedFamilies([.systemSmall]) }}效果
和app当地数据举行交互 AppData
先按照上面的步调创建 AppData 的widget 和 Intent文件
数据交互
小组件和app交互是通过AppGroups的交互的
主项目和子项目都需要创建AppGroups
在主项目生存数据
Swift
// appgrouplet z = UserDefaults.init(suiteName: "你的appgroupid")// 生存数据z?.set("demo", forKey: "demo")let demo = z?.value(forKey: "demo")print("AppGroup交互 = \(String(describing: demo))")// 全部革新WidgetCenter.shared.reloadAllTimelines() // 革新指定的kind// WidgetCenter.shared.reloadTimelines(ofKind: <#T##String#>)OC 需要创建桥接文件
创建WidgetKitManager.swift
第一次的话会自动设置
WidgetKitManager.swift
import WidgetKit@objc@available(iOS 14.0, *)class WidgetKitManager: NSObject { @objc static let shareManager = WidgetKitManager() /// MARK: 革新全部小组件 @objc func reloadAllTimelines() { #if arch(arm64) || arch(i386) || arch(x86_64) WidgetCenter.shared.reloadAllTimelines() #endif } /// MARK: 革新单个小组件 /* kind: 小组件Configuration 中的kind */ @objc func reloadTimelines(kind: String) { #if arch(arm64) || arch(i386) || arch(x86_64) WidgetCenter.shared.reloadTimelines(ofKind: kind) #endif }}OC
#import "WidgetController.h"#import "StudyOC-Swift.h"@interface WidgetController ()@end@implementation WidgetController- (void)viewDidLoad { [super viewDidLoad]; // Do any additional setup after loading the view. [self initWidget];}- (void)initWidget{ UIButton *btn = [UIButton new]; [btn setTitle "革新" forState:UIControlStateNormal]; [btn setTitleColor:[UIColor redColor] forState:UIControlStateNormal]; btn.frame = CGRectMake(0, 100, 100, 100); [btn addTarget:self actionselector(clicktBtn1) forControlEvents:UIControlEventTouchUpInside]; [self.view addSubview:btn];}- (void)clicktBtn1{// [WidgetCenter]; //使用 Groups ID 初始化一个供 App Groups 使用的 NSUserDefaults 对象 NSUserDefaults *userDefaults = [[NSUserDefaults alloc] initWithSuiteName"group.zhahntest"]; //写入数据 [userDefaults setValue"123456789" forKey"userID"]; //读取数据 NSString *userIDStr = [userDefaults valueForKey"userID"]; NSLog(@"zzr123 = %@",userIDStr); [[WidgetKitManager shareManager] reloadAllTimelines];}效果

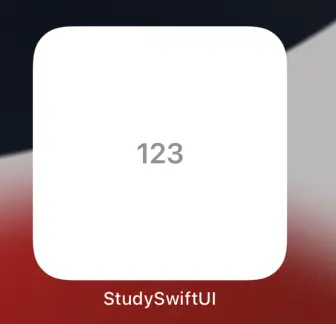

一开始是空的

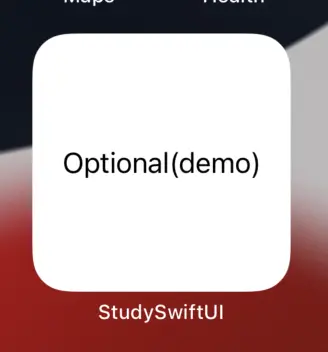

执行方法
革新机制
革新分被动革新和自动革新
自动革新
WidgetCenter.shared.reloadAllTimelines() // 革新指定的kind// WidgetCenter.shared.reloadTimelines(ofKind: <#T##String#>)被动革新，需要就算设置1分钟，小组件也是最快5分钟革新一次的
// 决定 Widget 何时革新 func getTimeline(for configuration: AppDataIntent, in context: Context, completion: @escaping (Timeline<Entry>) -> ()) { // 每隔2个小时革新。 let entry = AppDataEntry(date: Date(), configuration: configuration, str: String(describing: AppData)) // refresh the data every two hours let expireDate = Calendar.current.date(byAdding: .minute, value: 5, to: Date()) ?? Date()// print("zzr123 = \(expireDate)") let timeline = Timeline(entries: [entry], policy: .after(expireDate)) completion(timeline) }点击交互
点击是通过link和widgetURL操纵，格式是URL sheme
widgetUrl
widgetUrl 是针对整个小组件 点击小组件相应(如果有Link 就相应Link)
Link
LinK 给元素添加点击变乱， Link 对 systemSmall样式的组件不收效(systemSmall 样式的小组件只相应widgetUrl)
struct AppDataEntryView : View { var entry: AppDataProvider.Entry var body: some View { VStack { // 和App数据交互 Text(entry.str) Spacer() // 点击交互 HStack { Link(destination: URL(string: "https://www.baidu.com?str=left")!) { // 左 View leftView() } Spacer() .frame(width: 20) // 右 View Text("right") .widgetURL(URL(string: "https://www.baidu.com?str=right")) } } }}struct leftView : View { var body: some View { HStack { Text("Left") } }}监听是通过openUrl
SwiftUI
@mainstruct SwiftUIDemoApp: App { var body: some Scene { WindowGroup { ContentView() .onOpenURL { print("交互 = \($0)") } } }}Swift
// AppDelegatefunc application(_ app: UIApplication, open url: URL, options: [UIApplication.OpenURLOptionsKey : Any] = [:]) -> Bool { print("交互 = \(url)") return true}// SceneDelegate func scene(_ scene: UIScene, openURLContexts URLContexts: Set<UIOpenURLContext>) { print("交互 = \(URLContexts.first?.url)") }OC
// AppDelegate- (BOOL)application UIApplication *)app openURLNSURL *)url optionsNSDictionary<UIApplicationOpenURLOptionsKey,id> *)options{ NSLog(@"交互 = %@",url); return YES;}// SceneDelegate- (void)sceneUIScene *)scene openURLContextsNSSet<UIOpenURLContext *> *)URLContexts{ NSLog(@"交互 = %@",URLContexts.allObjects.firstObject.URL);} |
