SurfaceFlinger是android体现的焦点进程，在整个体现框架中起到一个承上启下的作用，“承上”指的是与app进程间的通讯，“启下”指的是与Composer进程的通讯。Surfaceflinger本身不进行绘制，是app数据上屏的中枢通路，先来看下SurfaceFlinger在整个体现流程中的位置。

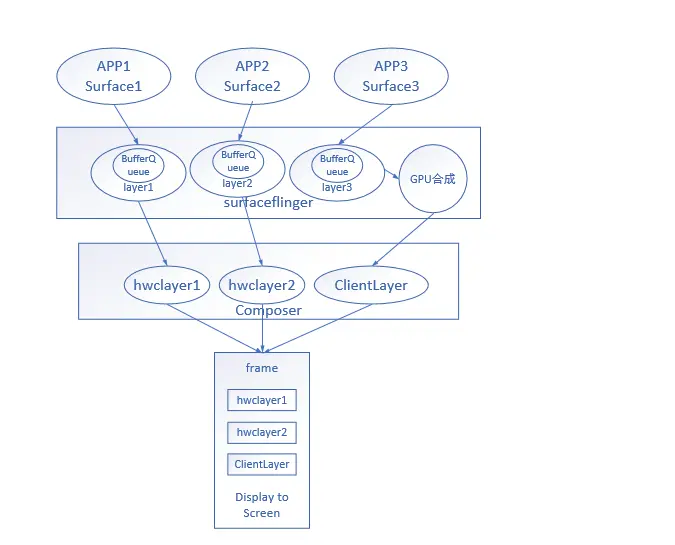

从体现流程图看可知，SurfaceFlinger位于中央层的位置，现在的应用会调起renderthread利用GPU来渲染，应用侧利用surface来管理体现数据，surfaceflinger利用layer来对应应用侧的surface，surfaceflinger会根据合成的方式，选择device还是GPU合成，最后将layer数据提交给Composer进程，进而通过display 驱动上屏。本文就来研究下app和SurfaceFlinger之间的通讯，告急针对native层的分析，代码基于android11。
APP与SurfaceFlinger之间的毗连
起首框架会创建surfaceControl来管理surface，在jni层会创建一个surfaceComposerClient对象，这个对象是负责与SurfaceFlinger进程通讯的告急载体。
文件：frameworks/base/core/jni/android_view_SurfaceControl.cppstatic jlong nativeCreate(JNIEnv* env, jclass clazz, jobject sessionObj, jstring nameStr, jint w, jint h, jint format, jint flags, jlong parentObject, jobject metadataParcel) { ScopedUtfChars name(env, nameStr); sp<SurfaceComposerClient> client; if (sessionObj != NULL) { client = android_view_SurfaceSession_getClient(env, sessionObj); } else { // 假如java侧没有该对象则创建SurfaceComposerClient对象 client = SurfaceComposerClient::getDefault(); } SurfaceControl *parent = reinterpret_cast<SurfaceControl*>(parentObject); sp<SurfaceControl> surface; ... // 通过SurfaceComposerClient创建一个Surface status_t err = client->createSurfaceChecked( String8(name.c_str()), w, h, format, &surface, flags, parent, std::move(metadata)); ... // 返回给上层surface对象 return reinterpret_cast<jlong>(surface.get());}文件：frameworks/native/libs/gui/SurfaceComposerClient.cpp sp<SurfaceComposerClient> SurfaceComposerClient::getDefault() { return DefaultComposerClient::getComposerClient(); }class DefaultComposerClient: public Singleton<DefaultComposerClient> { Mutex mLock; sp<SurfaceComposerClient> mClient; friend class Singleton<ComposerService>;public: static sp<SurfaceComposerClient> getComposerClient() { // 利用单例模式创建DefaultComposerClient 对象 DefaultComposerClient& dc = DefaultComposerClient::getInstance(); Mutex::Autolock _l(dc.mLock); if (dc.mClient == nullptr) { // 创建SurfaceComposerClient 对象 dc.mClient = new SurfaceComposerClient; } return dc.mClient; }};// 由于SurfaceComposerClient是sp指针，第一次创建时会实行onFirstRef 函数void SurfaceComposerClient: nFirstRef() { sp<ISurfaceComposer> sf(ComposerService::getComposerService()); if (sf != nullptr && mStatus == NO_INIT) { sp<ISurfaceComposerClient> conn; conn = sf->createConnection(); if (conn != nullptr) { mClient = conn; mStatus = NO_ERROR; } }}//在getComposerService 函数中调connectLocked来get到SurfaceFlinger服务并注册了殒命监听void ComposerService::connectLocked() { const String16 name("SurfaceFlinger"); while (getService(name, &mComposerService) != NO_ERROR) { usleep(250000); } assert(mComposerService != nullptr); // Create the death listener. class DeathObserver : public IBinder: eathRecipient { ComposerService& mComposerService; virtual void binderDied(const wp<IBinder>& who) { ALOGW("ComposerService remote (surfaceflinger) died [%p]", who.unsafe_get()); mComposerService.composerServiceDied(); } public: explicit DeathObserver(ComposerService& mgr) : mComposerService(mgr) { } }; mDeathObserver = new DeathObserver(*const_cast<ComposerService*>(this)); IInterface::asBinder(mComposerService)->linkToDeath(mDeathObserver);}文件：frameworks/native/services/surfaceflinger/surfaceflinger.cpp// 与SurfaceFlinger创建接洽，Client持有SurfaceFlinger对象sp<ISurfaceComposerClient> SurfaceFlinger::createConnection() { const sp<Client> client = new Client(this); return client->initCheck() == NO_ERROR ? client : nullptr;}看解释，至此完成了从SurfaceControl-> SurfaceComposerClient -> SurfaceFlinger的毗连过程。应用要创建Surface时，对应SurfaceFlinger会创建layer与之对应。
文件：frameworks/native/libs/gui/SurfaceComposerClient.cpp status_t SurfaceComposerClient::createSurfaceChecked(const String8& name, uint32_t w, uint32_t h, PixelFormat format, sp<SurfaceControl>* outSurface, uint32_t flags, SurfaceControl* parent, LayerMetadata metadata, uint32_t* outTransformHint) { sp<SurfaceControl> sur; ... // 会实行到Client.cpp内里的createSurface err = mClient->createSurface(name, w, h, format, flags, parentHandle, std::move(metadata), &handle, &gbp, &transformHint); ... ALOGE_IF(err, "SurfaceComposerClient::createSurface error %s", strerror(-err)); if (err == NO_ERROR) { // 根据返回的handle 和 gbp 创建 SurfaceControl *outSurface = new SurfaceControl(this, handle, gbp, transformHint); } } return err;}文件: frameworks/native/services/surfaceflinger/Client.cppstatus_t Client::createSurface(const String8& name, uint32_t w, uint32_t h, PixelFormat format, uint32_t flags, const sp<IBinder>& parentHandle, LayerMetadata metadata, sp<IBinder>* handle, sp<IGraphicBufferProducer>* gbp, uint32_t* outTransformHint) { // We rely on createLayer to check permissions. return mFlinger->createLayer(name, this, w, h, format, flags, std::move(metadata), handle, gbp, parentHandle, nullptr, outTransformHint);}文件： frameworks/native/services/surfaceflinger/SurfaceFlinger.cpptatus_t SurfaceFlinger::createLayer(const String8& name, const sp<Client>& client, uint32_t w, uint32_t h, PixelFormat format, uint32_t flags, LayerMetadata metadata, sp<IBinder>* handle, sp<IGraphicBufferProducer>* gbp, const sp<IBinder>& parentHandle, const sp<Layer>& parentLayer, ... sp<Layer> layer; ... switch (flags & ISurfaceComposerClient::eFXSurfaceMask) { case ISurfaceComposerClient::eFXSurfaceBufferQueue: // 对于surface范例创建layer范例，告急看下带有BufferQueue的layer result = createBufferQueueLayer(client, std::move(uniqueName), w, h, flags, std::move(metadata), format, handle, gbp, &layer); break; ... // 将创建的layer放到mCurrentState 内里，SurfaceFlinger内部管理了mCurrentState 和 mDrawingState result = addClientLayer(client, *handle, *gbp, layer, parentHandle, parentLayer, addToCurrentState, outTransformHint); ... setTransactionFlags(eTransactionNeeded); return result;}文件： frameworks/native/services/surfaceflinger/SurfaceFlinger.cppstatus_t SurfaceFlinger::createBufferQueueLayer(const sp<Client>& client, std::string name, uint32_t w, uint32_t h, uint32_t flags, LayerMetadata metadata, PixelFormat& format, sp<IBinder>* handle, sp<IGraphicBufferProducer>* gbp, sp<Layer>* outLayer) { ... sp<BufferQueueLayer> layer; LayerCreationArgs args(this, client, std::move(name), w, h, flags, std::move(metadata)); ... Mutex::Autolock lock(mStateLock); layer = getFactory().createBufferQueueLayer(args); ... if (err == NO_ERROR) { // 在surfaceflinger侧 new了一个handle，这个handle指向这个layer *handle = layer->getHandle(); //gbp是创建的BufferQueueProducer对象 *gbp = layer->getProducer(); *outLayer = layer; } ALOGE_IF(err, "createBufferQueueLayer() failed (%s)", strerror(-err)); return err;}文件： frameworks/native/services/surfaceflinger/SurfaceFlingerDefaultFactory.cppsp<BufferQueueLayer> DefaultFactory::createBufferQueueLayer(const LayerCreationArgs& args) { // new 了BufferQueueLayer对象，sp指针第一次创建时会实行onFirstRef 函数 return new BufferQueueLayer(args);}文件：frameworks/native/services/surfaceflinger/BufferQueueLayer.cppvoid BufferQueueLayer:nFirstRef() { BufferLayer:nFirstRef(); // Creates a custom BufferQueue for SurfaceFlingerConsumer to use sp<IGraphicBufferProducer> producer; sp<IGraphicBufferConsumer> consumer; // 创建一个BufferQueue对象，跟着创建一个BufferQueueCore, BufferQueueProducer和 BufferQueueConsumer对象 mFlinger->getFactory().createBufferQueue(&producer, &consumer, true); // 对producer 的一个封装，MonitoredProducer实质与 producer无差异 mProducer = mFlinger->getFactory().createMonitoredProducer(producer, mFlinger, this); // 创建BufferLayerConsumer ，起首创建父类ConsumerBase 对象 mConsumer = mFlinger->getFactory().createBufferLayerConsumer(consumer, mFlinger->getRenderEngine(), mTextureName, this); ... // 注册了一个监听，将BufferQueueLayer的函数方法注册到BufferQueueCore内里，说明当Buffer有变革时会关照BufferQueueLayer实行相应的动作 mContentsChangedListener = new ContentsChangedListener(this); mConsumer->setContentsChangedListener(mContentsChangedListener); mConsumer->setName(String8(mName.data(), mName.size())); // BufferQueueCore::mMaxDequeuedBufferCount is default to 1 // 设置producer最大dequeue的buffer数量 if (!mFlinger->isLayerTripleBufferingDisabled()) { mProducer->setMaxDequeuedBufferCount(2); }}文件：frameworks/native/services/surfaceflinger/Layer.cppsp<IBinder> Layer::getHandle() { Mutex::Autolock _l(mLock); if (mGetHandleCalled) { ALOGE("Get handle called twice" ); return nullptr; } mGetHandleCalled = true; // 创建一个handle对应layer return new Handle(mFlinger, this);}看解释，SurfaceFlinger侧创建了handle和GraphicsBufferProducer对象给到SurfaceControl，handle 指向surfaceflinger的layer，GraphicsBufferProducer 提供surface对Buffer的操纵接口，上层操纵surface的handle来作用到surfaceflinger的layer。至此，surfaceflinger创建layer的流程分析完了，比较绕的地方是涉及BufferQueue对象之间的关系，用一副类的关系图来说明之间的关系。
APP与SurfaceFlinger之间数据的通报

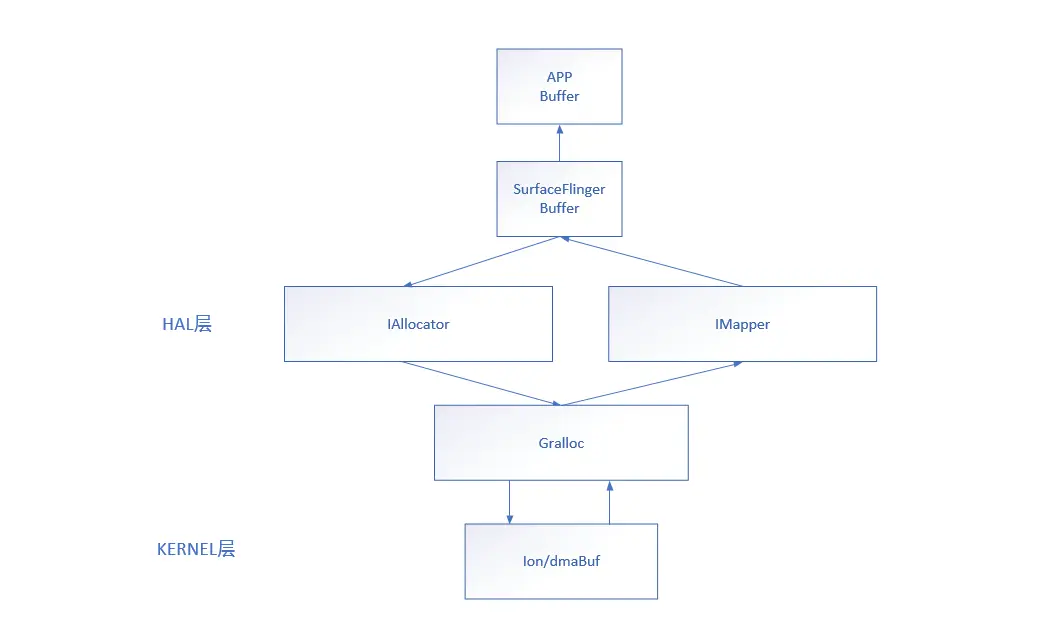

现在应用一样平常采取GPU去渲染加速，GPU操纵在RenderThread里(HWUI 内里的逻辑很复杂，后续会进行分析)，应用要绘制数据起首必要申请一块Buffer，由前面分析可知，应用是一个GraphicsBufferProducer的脚色，故可以通过dequeueBuffer来向surfaceflinger申请一块Buffer。
DequeueBuffer
文件： frameworks/native/libs/gui/Surface.cppint Surface::dequeueBuffer(android_native_buffer_t** buffer, int* fenceFd) { ATRACE_CALL(); ALOGV("Surface::dequeueBuffer"); ... // 从应用进程调到SurfaceFlinger进程，实现在SurfaceFlinger侧 status_t result = mGraphicBufferProducer->dequeueBuffer(&buf, &fence, reqWidth, reqHeight, reqFormat, reqUsage, &mBufferAge, enableFrameTimestamps ? &frameTimestamps : nullptr); ... // 后续会通过requestBuffer拿到Buffer sp<GraphicBuffer>& gbuf(mSlots[buf].buffer); ... // requestBuffer将通过importBuffer将Buffer映射到应用进程 result = mGraphicBufferProducer->requestBuffer(buf, &gbuf); ... *buffer = gbuf.get(); ... mDequeuedSlots.insert(buf); return OK;}文件： frameworks/native/libs/gui/BufferQueueProducer.cppstatus_t BufferQueueProducer::dequeueBuffer(int* outSlot, sp<android::Fence>* outFence, uint32_t width, uint32_t height, PixelFormat format, uint64_t usage, uint64_t* outBufferAge, FrameEventHistoryDelta* outTimestamps) { ... int found = BufferItem::INVALID_BUFFER_SLOT; while (found == BufferItem::INVALID_BUFFER_SLOT) { // 优先从mFreeBuffers 内里获取slot, 若没有则从mFreeSlots 内里获取，从mFreeSlots 内里获取的都是还未分配Buffer的slot status_t status = waitForFreeSlotThenRelock(FreeSlotCaller:equeue, lock, &found); ... } if (returnFlags & BUFFER_NEEDS_REALLOCATION) { ... //若得到的slot对应的buffer为空则重新分配一块GraphicsBuffer sp<GraphicBuffer> graphicBuffer = new GraphicBuffer( width, height, format, BQ_LAYER_COUNT, usage, {mConsumerName.string(), mConsumerName.size()}); ... mSlots[*outSlot].mGraphicBuffer = graphicBuffer; ...}文件： frameworks/native/libs/gui/BufferQueueProducer.cppstatus_t BufferQueueProducer::requestBuffer(int slot, sp<GraphicBuffer>* buf) { ... mSlots[slot].mRequestBufferCalled = true; // GraphicsBuffer跨进程通报实行unflatten *buf = mSlots[slot].mGraphicBuffer; return NO_ERROR;}文件： frameworks/native/libs/ui/GraphicBuffer.cppstatus_t GraphicBuffer::unflatten(void const*& buffer, size_t& size, int const*& fds, size_t& count) {...if (handle != nullptr) { buffer_handle_t importedHandle; status_t err = mBufferMapper.importBuffer(handle, uint32_t(width), uint32_t(height), uint32_t(layerCount), format, usage, uint32_t(stride), &importedHandle);... handle = importedHandle;... return NO_ERROR;}应用的surface实行dequeueBuffer是在应用进程，详细实现是通过BufferQueueProducer的dequeueBuffer，是在SurfaceFlinger进程，以是必要通过requestBuffer将Buffer映射到应用进程，详细实现是通过importBuffer。真正分配Buffer的地方是在ion，ion是怎么分配Buffer的，以及Buffer怎么实现app和SurfaceFlinger共享，先用一张简图概述下，后续会分析。
至此app就拿到了可绘制的Buffer，GPU可以将数据渲染到这块Buffer上。GPU将数据渲染到Buffer后，会实行eglSwapBuffers交换front和back buffer，eglSwapBuffers会调用queueBuffer，android系统用queueBuffer来哀求vsync 唤醒SurfaceFlinger革新。
queueBuffer
文件: frameworks/native/libs/gui/Surface.cppint Surface::queueBuffer(android_native_buffer_t* buffer, int fenceFd) { ... // dequeue出来的buffer对应的slot int i = getSlotFromBufferLocked(buffer); ... // 传入一些参数，此中 fenceFd 是由GPU带过来的，体现GPU渲染是否完成，这里为acquireFence IGraphicBufferProducer: ueueBufferInput input(timestamp, isAutoTimestamp, static_cast<android_dataspace>(mDataSpace), crop, mScalingMode, mTransform ^ mStickyTransform, fence, mStickyTransform, mEnableFrameTimestamps); ... // 调到SurfaceFlinger进程的queueBuffer status_t err = mGraphicBufferProducer->queueBuffer(i, input, &output); ...}文件： frameworks/native/libs/gui/BufferQueueProducer.cppstatus_t BufferQueueProducer::queueBuffer(int slot, const QueueBufferInput &input, QueueBufferOutput *output) {... BufferItem item;... // 将数据同步到item对象 item.mAcquireCalled = mSlots[slot].mAcquireCalled; item.mGraphicBuffer = mSlots[slot].mGraphicBuffer; item.mCrop = crop; item.mTransform = transform & ~static_cast<uint32_t>(NATIVE_WINDOW_TRANSFORM_INVERSE_DISPLAY); item.mTransformToDisplayInverse = (transform & NATIVE_WINDOW_TRANSFORM_INVERSE_DISPLAY) != 0; item.mScalingMode = static_cast<uint32_t>(scalingMode); item.mTimestamp = requestedPresentTimestamp; item.mIsAutoTimestamp = isAutoTimestamp; item.mDataSpace = dataSpace; item.mHdrMetadata = hdrMetadata; item.mFrameNumber = currentFrameNumber; item.mSlot = slot; item.mFence = acquireFence; item.mFenceTime = acquireFenceTime; item.mIsDroppable = mCore->mAsyncMode || (mConsumerIsSurfaceFlinger && mCore->mQueueBufferCanDrop) || (mCore->mLegacyBufferDrop && mCore->mQueueBufferCanDrop) || (mCore->mSharedBufferMode && mCore->mSharedBufferSlot == slot); item.mSurfaceDamage = surfaceDamage; item.mQueuedBuffer = true; item.mAutoRefresh = mCore->mSharedBufferMode && mCore->mAutoRefresh; item.mApi = mCore->mConnectedApi; ... // 把item放到mQueue内里 mCore->mQueue.push_back(item); // 这里的mCore->mConsumerListener 实际上为ConsumerBase对象 frameAvailableListener = mCore->mConsumerListener; ... if (frameAvailableListener != nullptr) { frameAvailableListener->onFrameAvailable(item); }...}文件： frameworks/native/libs/gui/ConsumerBase.cppvoid ConsumerBase:nFrameAvailable(const BufferItem& item) { CB_LOGV("onFrameAvailable"); sp<FrameAvailableListener> listener; { // scope for the lock Mutex::Autolock lock(mFrameAvailableMutex); listener = mFrameAvailableListener.promote(); } if (listener != nullptr) { CB_LOGV("actually calling onFrameAvailable"); // listener实际上是BufferQueueLayer对象 listener->onFrameAvailable(item); }}根据类图关系，frameAvailableListener 实际上是ConsumerBase 对象，在ConsumerBase 初始化的时间进行赋值，通过 mConsumer->consumerConnect(proxy, controlledByApp)接口，以是会调到ConsumerBase:nFrameAvailable， 而mFrameAvailableListener 是BufferQueueLayer -> setContentsChangedListener(mContentsChangedListener) 设的，实际上是 BufferQueueLayer对象，因此最后走到BufferQueueLayer:nFrameAvailable 逻辑内里了。
文件： frameworks/native/services/surfaceflinger/BufferQueueLayer.cppvoid BufferQueueLayer:nFrameAvailable(const BufferItem& item) { ... // 将item 放到mQueueItems内里 mQueueItems.push_back(item); mQueuedFrames++; ... // 申请vsync去触发surfaceflinger革新 mFlinger->signalLayerUpdate(); mConsumer->onBufferAvailable(item);}文件： frameworks/native/services/surfaceflinger/Scheduler/EventThread.cppvoid EventThread::requestNextVsync(const sp<EventThreadConnection>& connection) { if (connection->resyncCallback) { connection->resyncCallback(); } std::lock_guard<std::mutex> lock(mMutex); if (connection->vsyncRequest == VSyncRequest::None) { // Vsync哀求置为Single connection->vsyncRequest = VSyncRequest::Single; mCondition.notify_all(); }}让Surfaceflinger革新必要2个须要条件： 1. 有requestNextVsync 的哀求 2. 软件vsync盘算模子回调 onVSyncEvent创建一个vsyncEvent，涉及到vsync模子，反面会先容。
到这里，app完成了与SurfaceFlinger的毗连以及将应用数据传给到SurfaceFlinger。这里必要留意的是，着实SurfaceFlinger并不会动Buffer内里的数据，只是中央通报的一个过程，Buffer数据是由GPU渲染，display体现，下篇分析下SurfaceFlinger在革新时做了哪些动作。 |
