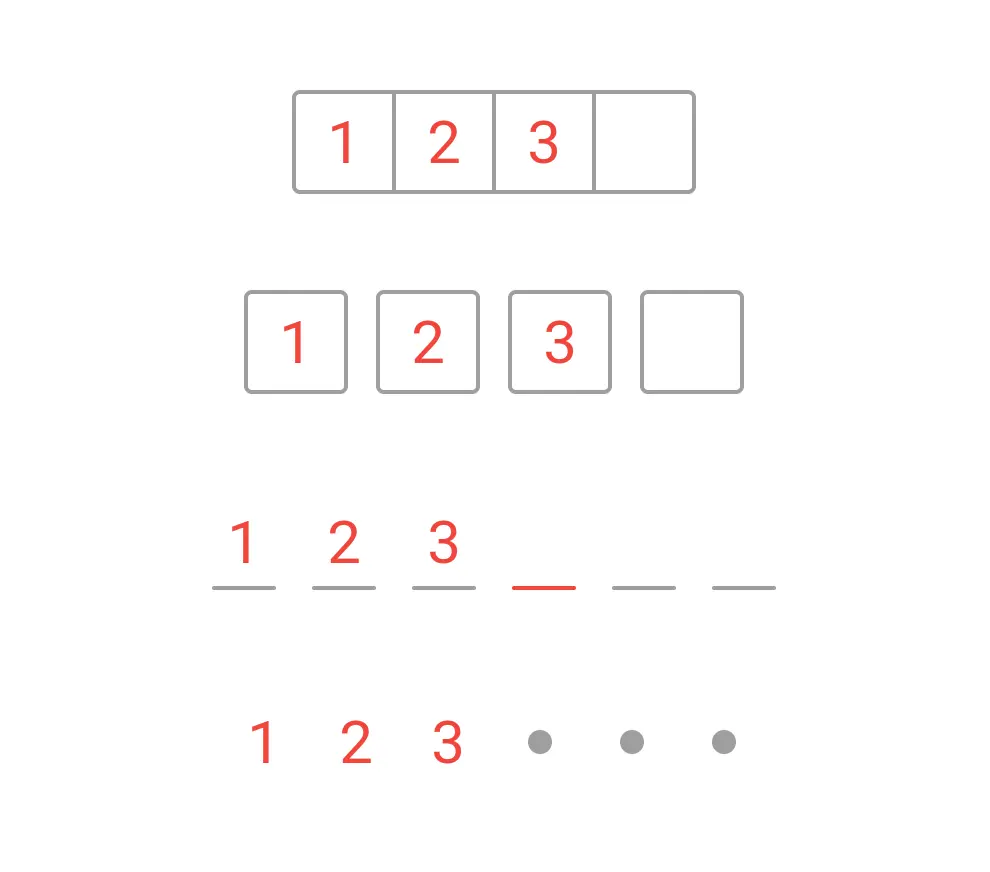

效果图（Flutter版本）
简介
前几天我发布了一个Android版本的短信验证码，本日发布Flutter版本，实在实现思绪和原生版本是如出一辙，可以说是直接把原生的绘制代码复制粘贴到Flutter项目中，kt修改为dart,实现样式还是下面四种：
以是这里就不在叙述实现思绪了，你也可以直接查看Android版本，点击
Android-自界说短信验证码
这里直接上全部代码，一把梭~
代码
import 'package:flutter/material.dart';import 'package:flutter/services.dart';/* * 模式 */enum CodeMode { //笔墨 text}/* * 样式 */enum CodeStyle { //表格 form, //方块 rectangle, //横线 line, //圈圈 circle}/* * 验证码 */class CodeWidget extends StatefulWidget { CodeWidget({ Key? key, this.maxLength = 4, this.height = 50, this.mode = CodeMode.text, this.style = CodeStyle.form, this.codeBgColor = Colors.transparent, this.borderWidth = 2, this.borderColor = Colors.grey, this.borderSelectColor = Colors.red, this.borderRadius = 3, this.contentColor = Colors.black, this.contentSize = 16, this.itemWidth = 50, this.itemSpace = 16, }) : super(key: key) { //如果是表格样式，就不设置Item之间的间隔 if (style == CodeStyle.form) { itemSpace = 0; } } late int maxLength; //高度 late double height; //验证码模式 late CodeMode mode; //验证码样式 late CodeStyle style; //配景致 late Color codeBgColor; //边框宽度 late double borderWidth; //边框默认颜色 late Color borderColor; //边框选中颜色 late Color borderSelectColor; //边框圆角 late double borderRadius; //内容颜色 late Color contentColor; //内容巨细 late double contentSize; // 单个Item宽度 late double itemWidth; //Item之间的间隙 late int itemSpace; @override State<CodeWidget> createState() => _CodeWidgetState();}class _CodeWidgetState extends State<CodeWidget> { FocusNode focusNode = FocusNode(); TextEditingController controller = TextEditingController(); @override Widget build(BuildContext context) { return SizedBox( height: widget.height, child: LayoutBuilder( builder: (BuildContext context, BoxConstraints constraints) { var size = Size(constraints.maxWidth, constraints.maxHeight); return CustomPaint( size: size, painter: CodeCustomPainter( widget.maxLength, size.width, size.height, widget.mode, widget.style, widget.codeBgColor, widget.borderWidth, widget.borderColor, widget.borderSelectColor, widget.borderRadius, widget.contentColor, widget.contentSize, widget.itemWidth, widget.itemSpace, focusNode, controller, ), child: TextField( //控制焦点 focusNode: focusNode, controller: controller, //光标不表现 showCursor: false, //光标颜色透明 cursorColor: Colors.transparent, enableInteractiveSelection: false, //设置最大长度 maxLength: widget.maxLength, //笔墨样式为透明 style: const TextStyle( color: Colors.transparent, ), //只答应数据数字 inputFormatters: [ FilteringTextInputFormatter.digitsOnly, ], //弹出数字键盘 keyboardType: TextInputType.number, //边框样式取消 decoration: null, ), ); }, ), ); }}class CodeCustomPainter extends CustomPainter { double width; double height; int maxLength; //验证码模式 late CodeMode mode; //验证码样式 late CodeStyle style; //配景致 Color codeBgColor; //边框宽度 double borderWidth; //边框默认颜色 Color borderColor; //边框选中颜色 Color borderSelectColor; //边框圆角 double borderRadius; //内容颜色 Color contentColor; //内容巨细 double contentSize; // 单个Item宽度 double itemWidth; //Item之间的间隙 int itemSpace; //焦点 FocusNode focusNode; TextEditingController controller; //线路画笔 late Paint linePaint; //笔墨画笔 late TextPainter textPainter; //当前笔墨索引 int currentIndex = 0; //左右间距值 double space = 0; CodeCustomPainter( this.maxLength, this.width, this.height, this.mode, this.style, this.codeBgColor, this.borderWidth, this.borderColor, this.borderSelectColor, this.borderRadius, this.contentColor, this.contentSize, this.itemWidth, this.itemSpace, this.focusNode, this.controller, ) { linePaint = Paint() ..color = borderColor ..isAntiAlias = true ..style = PaintingStyle.stroke ..strokeCap = StrokeCap.round ..strokeWidth = borderWidth; textPainter = TextPainter( textAlign: TextAlign.center, textDirection: TextDirection.ltr, ); } @override void paint(Canvas canvas, Size size) { //当前索引（待输入的光标位置） currentIndex = controller.text.length; //Item宽度（这里判定如果设置了宽度而且公道就使用当前设置的宽度，否则均匀盘算） if (itemWidth != -1 && (itemWidth * maxLength + itemSpace * (maxLength - 1)) <= width) { itemWidth = itemWidth; } else { itemWidth = ((width - itemSpace * (maxLength - 1)) / maxLength); } //盘算左右间距巨细 space = (width - itemWidth * maxLength - itemSpace * (maxLength - 1)) / 2; //绘制样式 switch (style) { //表格 case CodeStyle.form: _drawFormCode(canvas, size); break; //方块 case CodeStyle.rectangle: _drawRectangleCode(canvas, size); break; //横线 case CodeStyle.line: _drawLineCode(canvas, size); break; //圈圈 case CodeStyle.circle: _drawCircleCode(canvas, size); break; //TODO 拓展 } //绘制笔墨内容 _drawContentCode(canvas, size); } /* * 绘制表格样式 */ void _drawFormCode(Canvas canvas, Size size) { //绘制表格边框 Rect rect = Rect.fromLTRB(space, 0, width - space, height); RRect rRect = RRect.fromRectAndRadius(rect, Radius.circular(borderRadius)); linePaint.color = borderColor; canvas.drawRRect(rRect, linePaint); //绘制表格中心分割线 for (int i = 1; i < maxLength; i++) { double startX = space + itemWidth * i + itemSpace * i; double startY = 0; double stopY = height; canvas.drawLine(Offset(startX, startY), Offset(startX, stopY), linePaint); } //绘制当前位置边框 for (int i = 0; i < maxLength; i++) { if (currentIndex != -1 && currentIndex == i && focusNode.hasFocus) { //盘算每个表格的左边间隔 double left = 0; if (i == 0) { left = (space + itemWidth * i); } else { left = ((space + itemWidth * i + itemSpace * i)); } linePaint.color = borderSelectColor; //第一个 if (i == 0) { RRect rRect = RRect.fromLTRBAndCorners( left, 0, left + itemWidth, height, topLeft: Radius.circular(borderRadius), bottomLeft: Radius.circular(borderRadius)); canvas.drawRRect(rRect, linePaint); } //末了一个 else if (i == maxLength - 1) { RRect rRect = RRect.fromLTRBAndCorners( left, 0, left + itemWidth, height, topRight: Radius.circular(borderRadius), bottomRight: Radius.circular(borderRadius)); canvas.drawRRect(rRect, linePaint); } //其他 else { RRect rRect = RRect.fromLTRBAndCorners(left, 0, left + itemWidth, height); canvas.drawRRect(rRect, linePaint); } } } } /* * 绘制方块样式 */ void _drawRectangleCode(Canvas canvas, Size size) { for (int i = 0; i < maxLength; i++) { double left = 0; if (i == 0) { left = space + i * itemWidth; } else { left = space + i * itemWidth + itemSpace * i; } Rect rect = Rect.fromLTRB(left, 0, left + itemWidth, height); RRect rRect = RRect.fromRectAndRadius(rect, Radius.circular(borderRadius)); //当前光标样式 if (currentIndex != -1 && currentIndex == i && focusNode.hasFocus) { linePaint.color = borderSelectColor; canvas.drawRRect(rRect, linePaint); } //默认样式 else { linePaint.color = borderColor; canvas.drawRRect(rRect, linePaint); } } } /* * 绘制横线样式 */ void _drawLineCode(Canvas canvas, Size size) { for (int i = 0; i < maxLength; i++) { //当前选中状态 if (controller.value.text.length == i && focusNode.hasFocus) { linePaint.color = borderSelectColor; } //默认状态 else { linePaint.color = borderColor; } double startX = space + itemWidth * i + itemSpace * i; double startY = height - borderWidth; double stopX = startX + itemWidth; double stopY = startY; canvas.drawLine(Offset(startX, startY), Offset(stopX, stopY), linePaint); } } /* * 绘制圈圈样式 */ void _drawCircleCode(Canvas canvas, Size size) { for (int i = 0; i < maxLength; i++) { //当前绘制的圆圈的左x轴坐标 double left = 0; if (i == 0) { left = space + i * itemWidth; } else { left = space + i * itemWidth + itemSpace * i; } //圆心坐标 double cx = left + itemWidth / 2.0; double cy = height / 2.0; //圆形半径 double radius = itemWidth / 5.0; //默认样式 if (i >= currentIndex) { linePaint.style = PaintingStyle.fill; canvas.drawCircle(Offset(cx, cy), radius, linePaint); } } } /* * 绘制验证码笔墨 */ void _drawContentCode(Canvas canvas, Size size) { String textStr = controller.text; for (int i = 0; i < maxLength; i++) { if (textStr.isNotEmpty && i < textStr.length) { switch (mode) { case CodeMode.text: String code = textStr.toString(); textPainter.text = TextSpan( text: code, style: const TextStyle(color: Colors.red, fontSize: 30), ); textPainter.layout(); double x = space + itemWidth * i + itemSpace * i + (itemWidth - textPainter.width) / 2; double y = (height - textPainter.height) / 2; textPainter.paint(canvas, Offset(x, y)); break; //TODO 拓展 } } } } @override bool shouldRepaint(covariant CustomPainter oldDelegate) { return true; }}如果滑动到这里，别忙走，请关注下"Android小样"公众号呗。
Github:https://github.com/yixiaolunhui/flutter_xy
