媒介 :

各位同学的各人好，迩来在学习鸿蒙开辟，由于我是从事手游SDK 开辟的之前也写过iOS 手游sdk 开辟和安卓手游sdk 开辟（kotlin 版本）

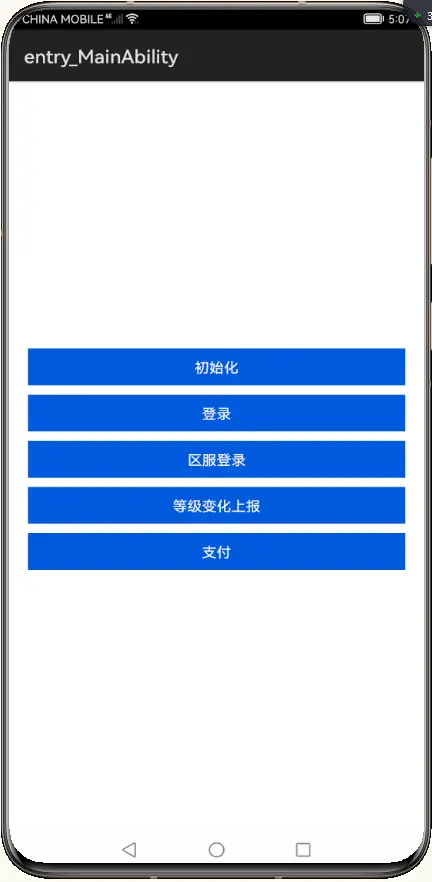

结果图：

筹划思绪

我们必要封装 init login servicelogin updateuserinfo 等对外接口给到游戏去调用
package com.example.myapplication;import com.example.myapplication.bean.BackInfo;import com.example.myapplication.bean.RoleInfo;import com.example.myapplication.bean.ServiceInfo;import com.example.myapplication.lisenter.InitListener;import com.example.myapplication.lisenter.LoginLisenter;import com.example.myapplication.lisenter.ServiceListener;import com.example.myapplication.lisenter.UpdateUserListener;import com.google.gson.Gson;import com.zhy.http.okhttp.OkHttpUtils;import com.zhy.http.okhttp.callback.StringCallback;import ohos.app.Context;import okhttp3.Call;import java.util.HashMap;import java.util.Map;public class NineFunSdk { private Boolean initFlag=false; private static NineFunSdk instance; private NineFunSdk() { } public static NineFunSdk getInstance(){ if(instance==null){ synchronized (NineFunSdk.class){ if(instance==null){ instance=new NineFunSdk(); } } } return instance; } public void init(InitListener listener){ Map<String,String> map=new HashMap<>(); map.put("deviceid","2341414"); map.put("system_type","android"); map.put("version","1.1"); map.put("gid","35"); map.put("device","saff"); map.put("device_model","1214141"); map.put("device_model","WEFWF"); map.put("device_model","21E131"); OkHttpUtils.post().url(Config.INIT).params(map) .build() .execute(new StringCallback() { @Override public void onError(Call call, Exception e, int i) { listener.initError(); } @Override public void onResponse(String s, int i) { Gson gson=new Gson(); BackInfo backInfo=gson.fromJson(s,BackInfo.class); if(backInfo.getCode()==200){ initFlag=true; listener.initSuccess(); }else{ listener.initError(); } } }); } public void checkLogin(Context context, LoginLisenter lisenter){ if(initFlag){ LoginDialog loginDialog = new LoginDialog(context,lisenter); loginDialog.show(); }else{ ToastUtils.showInfo(context,"请先调用初始化"); } } /** * * * @param serviceInfo * @param lisenter */ public void serviceLogin(ServiceInfo serviceInfo, ServiceListener lisenter){ StringBuilder preSign = new StringBuilder(); preSign.append("sid=").append(serviceInfo.getSid()); preSign.append("&role_id=").append(serviceInfo.getRole_id()); preSign.append("&role_name=").append(serviceInfo.getRole_name()); preSign.append("||").append("0a649d6b-df9f-4583-bf7d-3fae84838519"); Map<String,String> map=new HashMap<>(); map.put("gid",serviceInfo.getGid()); map.put("sid",serviceInfo.getGid()); map.put("role_name",serviceInfo.getGid()); map.put("role_level",serviceInfo.getGid()); map.put("role_id",serviceInfo.getGid()); map.put("sign",preSign.toString()); OkHttpUtils.post().url(Config.SERVICE_LOGIN).params(map) .build() .execute(new StringCallback() { @Override public void onError(Call call, Exception e, int i) { } @Override public void onResponse(String s, int i) { Gson gson=new Gson(); BackInfo backInfo=gson.fromJson(s,BackInfo.class); if(backInfo.getCode()==200){ lisenter.serviceLoginSuccess(); } } }); } /** * * @param roleInfo * @param lisenter */ public void updateUserInfo(RoleInfo roleInfo, UpdateUserListener lisenter){ StringBuilder preSign = new StringBuilder(); preSign.append("sid=").append(roleInfo.getGid()); preSign.append("&role_id=").append(roleInfo.getRole_id()); preSign.append("&role_name=").append(roleInfo.getRole_name()); preSign.append("||").append("0a649d6b-df9f-4583-bf7d-3fae84838519"); Map<String,String> map=new HashMap<>(); map.put("gid",roleInfo.getGid()); map.put("sid",roleInfo.getGid()); map.put("role_name",roleInfo.getGid()); map.put("role_level",roleInfo.getGid()); map.put("role_id",roleInfo.getGid()); map.put("sign",preSign.toString()); OkHttpUtils.post().url(Config.UPDATE_USERINFO).params(map) .build() .execute(new StringCallback() { @Override public void onError(Call call, Exception e, int i) { } @Override public void onResponse(String s, int i) { Gson gson=new Gson(); BackInfo backInfo=gson.fromJson(s,BackInfo.class); if(backInfo.getCode()==200){ lisenter.updateuserSuccess(); } } }); }}登录框实现：

布局

<?xml version="1.0" encoding="utf-8"?><DependentLayout xmlns

hos="http://schemas.huawei.com/res/ohos" ohos:height="240vp" ohos:width="300vp" ohos:alignment="center" > <DirectionalLayout ohos:height="match_parent" ohos:width="match_parent" ohos:left_margin="20vp" ohos:right_margin="20vp" ohos

rientation="vertical" > <DirectionalLayout ohos:height="60vp" ohos:width="match_parent" ohos

rientation="horizontal" > <Text ohos:id="$+id:text_account" ohos:height="35vp" ohos:width="35vp" ohos:layout_alignment="center" ohos:text="账号" ohos:text_alignment="horizontal_center" ohos:text_size="15vp" ohos:text_color="#000000" ohos:top_margin="10vp" /> <TextField ohos:id="$+id:tf_account" ohos:height="40vp" ohos:width="match_parent" ohos:hint="请输入账号" ohos:text_size="15vp" ohos:right_margin="20vp" ohos:left_margin="20vp" ohos:text_color="#000000" ohos:layout_alignment="center" ohos:basement="#000099" ohos:multiple_lines="false" /> </DirectionalLayout> <DirectionalLayout ohos:height="60vp" ohos:width="match_parent" ohos

rientation="horizontal" > <Text ohos:id="$+id:text_password" ohos:height="match_parent" ohos:width="35vp" ohos:layout_alignment="center" ohos:text_alignment="horizontal_center" ohos:text="暗码" ohos:text_size="15vp" ohos:text_color="#000000" ohos:top_margin="10vp" /> <TextField ohos:id="$+id:tf_password" ohos:height="40vp" ohos:width="match_parent" ohos:hint="请输入暗码" ohos:text_size="15vp" ohos:right_margin="20vp" ohos:left_margin="20vp" ohos:layout_alignment="center" ohos:text_color="#000000" ohos:basement="#000099" ohos:multiple_lines="false" /> </DirectionalLayout> <DirectionalLayout ohos:height="match_parent" ohos:width="match_parent" ohos

rientation="horizontal" ohos:top_margin="20vp" > <Button ohos:id="$+id:registerbtn" ohos:height="40vp" ohos:width="0vp" ohos:background_element="$graphic:background_btn_blue" ohos:text_color="#ffffff" ohos:text="快速注册" ohos:weight="1" ohos:left_margin="10vp" ohos:right_margin="10vp" ohos:text_size="15vp" > </Button> <Button ohos:id="$+id:logindialogbtn" ohos:height="40vp" ohos:width="0vp" ohos:background_element="$graphic:background_btn_blue" ohos:text_color="#ffffff" ohos:text="登录" ohos:weight="1" ohos:left_margin="10vp" ohos:right_margin="10vp" ohos:text_size="15vp" > </Button> </DirectionalLayout> </DirectionalLayout></DependentLayout>

布局结果

具体逻辑

package com.example.myapplication;import com.example.myapplication.lisenter.LoginLisenter;import com.google.gson.Gson;import com.zhy.http.okhttp.OkHttpUtils;import com.zhy.http.okhttp.callback.StringCallback;import ohos.agp.components.*;import ohos.agp.utils.LayoutAlignment;import ohos.agp.utils.TextAlignment;import ohos.agp.window.dialog.CommonDialog;import ohos.agp.window.dialog.ToastDialog;import ohos.app.Context;import ohos.hiviewdfx.HiLog;import ohos.hiviewdfx.HiLogLabel;import okhttp3.Call;import java.util.HashMap;import java.util.Locale;import java.util.Map;import static com.example.myapplication.Config.LOGIN_URL;import static ohos.agp.components.ComponentContainer.LayoutConfig.MATCH_CONTENT;/** * * 创建人：xuqing * 创建时间：2022年5月12日11:55:53 * 类分析：登录弹窗 * */public class LoginDialog extends CommonDialog { static final HiLogLabel LABEL = new HiLogLabel(HiLog.LOG_APP, 0x00201, "MY_TAG"); private Context context; private Component customComponent; private TextField account, pswtf; private String username, password; private Button loginbtn; private LoginLisenter lisenter; public LoginDialog(Context context,LoginLisenter lisenter) { super(context); this.context=context; this.lisenter=lisenter; setAlignment(TextAlignment.CENTER); setSize(MATCH_CONTENT, MATCH_CONTENT); initComponents(); } private void initComponents() { customComponent = LayoutScatter.getInstance(context) .parse(ResourceTable.Layout_dialog_login, null, true); super.setContentCustomComponent(customComponent); loginbtn = (Button) customComponent.findComponentById(ResourceTable.Id_logindialogbtn); account= (TextField) customComponent.findComponentById(ResourceTable.Id_tf_account); pswtf= (TextField) customComponent.findComponentById(ResourceTable.Id_tf_password); loginbtn.setClickedListener(new Component.ClickedListener() { @Override public void onClick(Component component) { username=account.getText().toString(); password=pswtf.getText().toString(); if(!TextUtils.Isempty(username)&& !TextUtils.Isempty(password)){ Map<String,String>loginmap=new HashMap<>(); loginmap.put("username",username); loginmap.put("password",password); login(loginmap); }else{ ToastUtils.showInfo(context,"账号暗码不能为空"); } } }); } public void login(Map<String,String> map){ HiLog.warn(LABEL, "Failed to visit %{private}map , ", map.toString()); // ToastUtils.showInfo(context,map.toString()); ToastUtils.showInfo(context,LOGIN_URL); OkHttpUtils.get(). url(LOGIN_URL) .params(map) .build() .execute(new StringCallback() { @Override public void onError(Call call, Exception e, int i) { System.out.println("Exception --- > "+e); } @Override public void onResponse(String s, int i) { System.out.println("okhttpUtilsNet s --- > "+s); HiLog.warn(LABEL, "Failed to visit %{private}s, ", s); Gson gson=new Gson(); LofinInfo lofinInfo=gson.fromJson(s,LofinInfo.class); int code=lofinInfo.getCode(); if(code==200){ ToastUtils.showInfo(context,"登录乐成"); lisenter.loginSuccess(s); LoginDialog.this.destroy(); } } }); }}

登录对外接口

public void checkLogin(Context context, LoginLisenter lisenter){ if(initFlag){ LoginDialog loginDialog = new LoginDialog(context,lisenter); loginDialog.show(); }else{ ToastUtils.showInfo(context,"请先调用初始化"); } }

登录调用

private void login() {    NineFunSdk.getInstance().checkLogin(MainAbility.this, new LoginLisenter() {          @Override          public void loginSuccess(String data) {             System.out.println("data  --- > "+data );          }          @Override          public void loginError() {          }    }); }登录弹窗内里逻辑也比力简朴就是游戏在外部调用SDK 我们在初始化乐成以后我们体现登录弹窗。然后用户输入账号暗码我们去登录哀求服务器如果登录乐成我们将服务器返回数据布局回调给游戏游戏拿到token和userid 去哀求api/token验证接口举行验证登录结果即可
区服上报接口

/**    *    *    * @param serviceInfo    * @param lisenter    */ public void  serviceLogin(ServiceInfo  serviceInfo, ServiceListener lisenter){       StringBuilder preSign = new StringBuilder();       preSign.append("sid=").append(serviceInfo.getSid());       preSign.append("&role_id=").append(serviceInfo.getRole_id());       preSign.append("&role_name=").append(serviceInfo.getRole_name());       preSign.append("||").append("0a649d6b-df9f-4583-bf7d-3fae84838519");       Map<String,String> map=new HashMap<>();       map.put("gid",serviceInfo.getGid());       map.put("sid",serviceInfo.getGid());       map.put("role_name",serviceInfo.getGid());       map.put("role_level",serviceInfo.getGid());       map.put("role_id",serviceInfo.getGid());       map.put("sign",preSign.toString());       OkHttpUtils.post().url(Config.SERVICE_LOGIN).params(map)             .build()             .execute(new StringCallback() {                   @Override                   public void onError(Call call, Exception e, int i) {                   }                   @Override                   public void onResponse(String s, int i) {                      Gson gson=new Gson();                      BackInfo backInfo=gson.fromJson(s,BackInfo.class);                      if(backInfo.getCode()==200){                         lisenter.serviceLoginSuccess();                      }                   }             }); }区服登录调用

private void servicelogin() {       ServiceInfo serviceInfo=new ServiceInfo();       serviceInfo.setGid("11");       serviceInfo.setRole_id("11");       serviceInfo.setRole_name("齐天大圣");       serviceInfo.setRole_level("1000");       serviceInfo.setSid("1234");       NineFunSdk.getInstance().serviceLogin(serviceInfo, new ServiceListener() {          @Override          public void serviceLoginSuccess() {          }          @Override          public void serviceLoginError() {          }       }); 同理品级厘革更新也是一样的  我就不睁开讲了。

打包 har

安卓本地库是aar 华为是har 最早从前我用eclipse 开辟的时间我是分开打的 jar包和资源用了android studio 就打包aar了鸿蒙和安卓差不多的我们必要创建一个library 的本地库

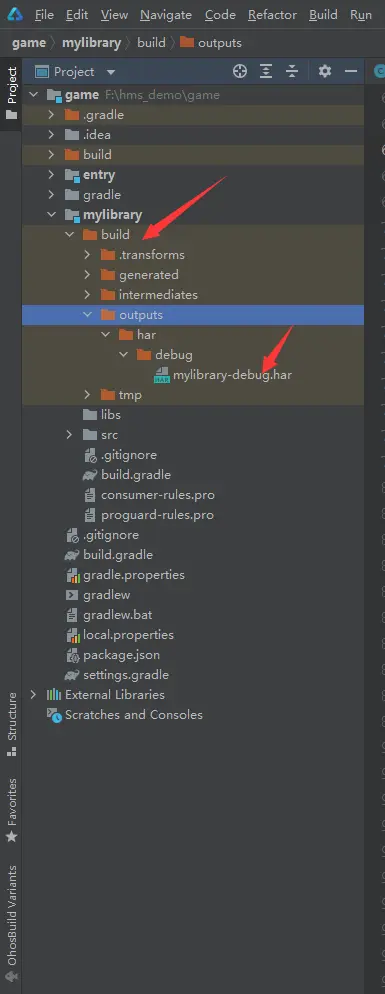

然后在打包以后在build内里可以看到我们的har 文件

末了总结：

鸿蒙的手游sdk 开辟和安卓的手游sdk开辟比力类似不外这里的SDK内里的界面我用的是弹窗但是在安卓内里我用的是透明的视图activity 安卓内里你也可以用弹窗这个看具体实现。整个的开辟难度不大主要是对外接口的筹划另有就是制止使用三方库另有就是代码的肴杂，对外类和对外接口我们肯定不能肴杂否则会导致本地库不能正常接入。末了渴望我的文章能资助到各位办理题目，以后我还会贡献更多有效的代码分享给各人。各位同学如果以为文章还不错，贫困给关注和star，小弟在这里谢过啦!
