WebRTC：搭建Socket.Io信令服务器（实现简单的谈天室）

源代码 · 2024-9-20 16:03:21

目次

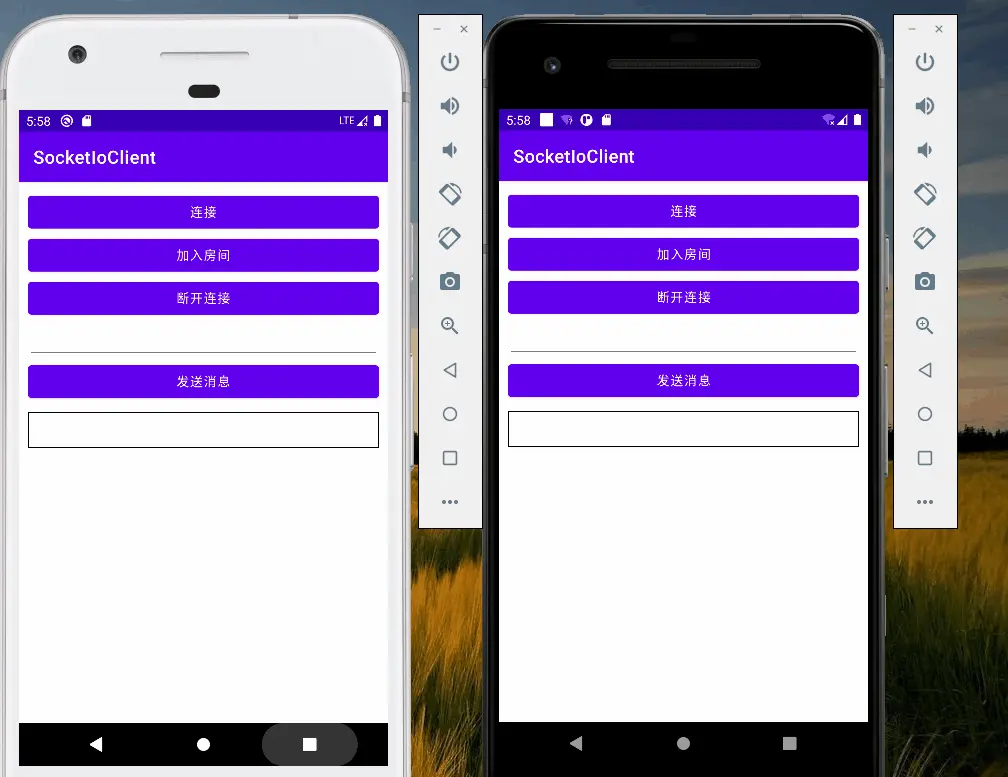

效果展示

实现步骤

1.搭建服务端

这里我们用的是nodejs搭建的，由于我们用的不是最新尺度的socket.io因此我们须要下载指定版本的socket.io
npm install socket.io@2.0.4代码如下：
'use strict'var http = require('http');var socketio = require('socket.io');var server = http.createServer(function(req, res) { res.writeHead(200, {'Content-Type': 'text/plain'}); res.end('Hello World\n');});server.listen(3000, '0.0.0.0');var io = socketio.listen(server);io.on('connection', (sokcetClient) => { console.log(sokcetClient.id); sokcetClient.on('join', (roomId) => {       //到场房间       sokcetClient.join(roomId);       //关照某设备到场房间       sokcetClient.in(roomId).emit('joined', roomId, sokcetClient.id); }); sokcetClient.on('leave', (roomId) => {       //离开房间       sokcetClient.leave(roomId);       //关照某设备离开房间       sokcetClient.in(roomId).emit('leaved', roomId, sokcetClient.id); }); sokcetClient.on('sendRoomMsg',(roomId,msg)=>{       //向房间内推送消息       sokcetClient.in(roomId).emit('receiveRoomMsg', msg); })});其中socket.io中部分常用的函数及左右如下：
on：用于监听对应的事故，吸取的参数取决于emit发送的数据
emit：用于发送相应的事故
in(roomId).emit：用于在相应的房间内发送事故
join(roomId)：到场相应的房间
leave(roomId)：离开相应的房间
2.客户端实现

1.引入依靠

https://socketio.github.io/socket.io-client-java/installation.html

这里由于服务器不是使用的最新的socketio，因此我们客户端也引入1.0.0版本的库
implementation ('io.socket:socket.io-client:1.0.0') {       // excluding org.json which is provided by Android       exclude group: 'org.json', module: 'json' }2.代码实现

<?xml version="1.0" encoding="utf-8"?><layout xmlns:android="http://schemas.android.com/apk/res/android" xmlns:app="http://schemas.android.com/apk/res-auto" xmlns:tools="http://schemas.android.com/tools"> <data> </data> <LinearLayout       android

rientation="vertical" android:layout_width="match_parent" android:layout_height="match_parent" android:background="@color/white" android:padding="10dp" tools:context=".MainActivity"> <Button android:id="@+id/bt_connect" android:text="毗连" android:layout_width="match_parent" android:layout_height="wrap_content"/> <Button android:id="@+id/bt_joinroom" android:text="到场房间" android:layout_width="match_parent" android:layout_height="wrap_content"/> <Button android:id="@+id/bt_disConnect" android:text="断开毗连" android:layout_width="match_parent" android:layout_height="wrap_content"/> <EditText android:id="@+id/et_sendmsg" android:layout_width="match_parent" android:layout_height="wrap_content"/> <Button android:id="@+id/bt_sendmsg" android:text="发送消息" android:layout_width="match_parent" android:layout_height="wrap_content"/> <TextView android:id="@+id/tv_chat" android:layout_marginTop="10dp" android:padding="10dp" android:background="@drawable/shape_chat" android:textColor="@color/black" android:textSize="15sp" android:layout_width="match_parent" android:layout_height="wrap_content"/> </LinearLayout></layout>class MainActivity : AppCompatActivity() { private lateinit var mainBinding: ActivityMainBinding private var socket: Socket? = null private var roomId = "111" //房间号 override fun onCreate(savedInstanceState: Bundle?) { super.onCreate(savedInstanceState) mainBinding = DataBindingUtil.setContentView<ActivityMainBinding>(this,R.layout.activity_main) mainBinding.lifecycleOwner = this initListener() } private fun initListener() { mainBinding.btConnect.setOnClickListener { connectSocketIo() } mainBinding.btDisConnect.setOnClickListener { socket?.let { //发送离开事故 it.emit("leave",roomId) it.disconnect() it.close() } } mainBinding.btJoinroom.setOnClickListener { socket?.let { //发送到场事故 it.emit("join",roomId) } } mainBinding.btSendmsg.setOnClickListener { var msg = mainBinding.etSendmsg.text.toString() //发送消息就是发送sendRoomMsg事故，然后服务器会举行转发 socket?.let { it.emit("sendRoomMsg",roomId,msg) addMsg2View(msg) } } } private fun connectSocketIo(){ socket = IO.socket("http://192.168.16.52:3000/").apply { connect() //吸取joined事故，用于提示有人到场房间了 on("joined") { var roomId = it[0] var clientId = it[1] Log.e("到场","房间id：$roomId 客户端id：$clientId") runOnUiThread { Toast.makeText(this@MainActivity,"客户端：$clientId 到场房间",Toast.LENGTH_SHORT).show() } } //吸取receiveRoomMsg事故用于对房间消息的显示 on("receiveRoomMsg") { var roomMsg = it[0] runOnUiThread { addMsg2View(roomMsg as String) } } } } /** * 添加消息到控件 */ private fun addMsg2View(roomMsg: String) { var currentMsg = mainBinding.tvChat.text.toString() if(TextUtils.isEmpty(currentMsg)){ mainBinding.tvChat.text = "$roomMsg" }else{ mainBinding.tvChat.text = "$currentMsg \n $roomMsg" } }}
